Vacuum Brush Roll Stopped Spinning After Burning Smell

A vacuum brush roll that stops spinning after a burning rubber smell means the belt snapped or slipped off. Here's how to replace it and get the carpet cleaning again in ten minutes.

Category:Appliances

Difficulty:Easy

Time:10 min

Success:50%

Updated:May 28, 2026

quick_referenceQuick Answer

For Vacuum Brush Roll Stopped Spinning After Burning Smell, start with "Unplug the vacuum and flip it over to access the brush roll cover": Stop running the vacuum — running it with a snapped belt lets the motor shaft spin against the melted belt, leaving rubber residue that makes the new belt slip. Unplug the vacuum. Flip it over onto a towel to protect your floor from scratches. Remove the screws holding the bottom cover plate — they're usually Phillips-head and there are four to six of them. Pull the cover off and set it aside. You will immediately see the brush roll and whatever is left of the old belt. Stop DIY if the motor shaft is visibly bent or wobbles when you spin it by hand — this will destroy new belts within minutes. This is listed as a easy recovery and usually takes about 10 min.

verifiedGuide Snapshot

Repair areaAppliances

Estimated time10 min

DifficultyEasy

Stop conditions3

Last updated May 28, 2026. Review the stop conditions before continuing.

account_treeRecovery State

DeviceVacuum Cleaner

Current stateBrush Roll Not Spinning

Specific stateBelt Snapped

Failed stepCarpet Cleaning

Likely failure typeWorn Part

DIY boundaryDIY recovery first

paymentsCost decision

help1. Understand the Problem

The brush roll in an upright vacuum is driven by a rubber belt that wraps around the motor shaft and the brush roll pulley. When the belt snaps, the brush roll stops turning and the vacuum just blows air across the carpet without agitating the fibers. Belts wear out from heat, age, and friction — especially if the brush roll gets jammed with hair, string, or carpet fringe. A burning rubber smell right before it stopped is the classic sign of a belt that melted and snapped.

build_circle2. Try This First

Best First Step

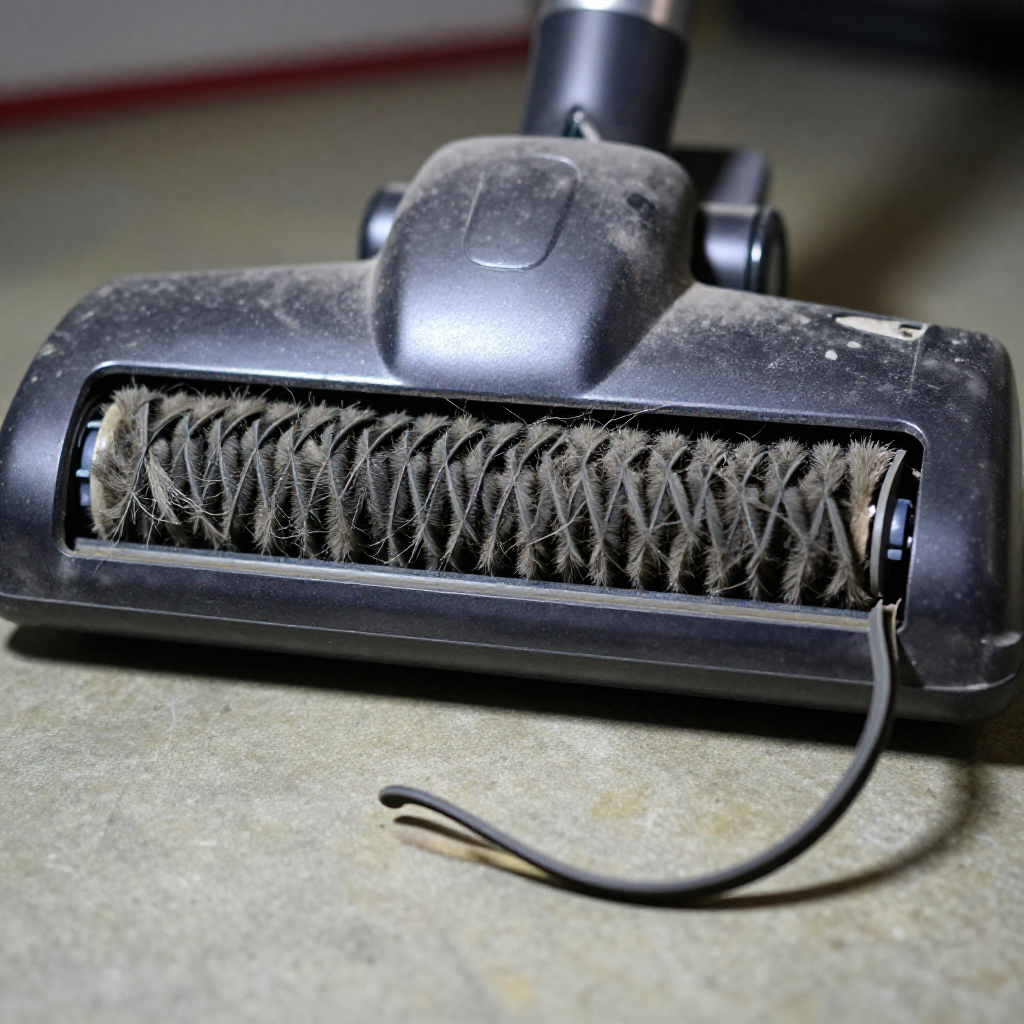

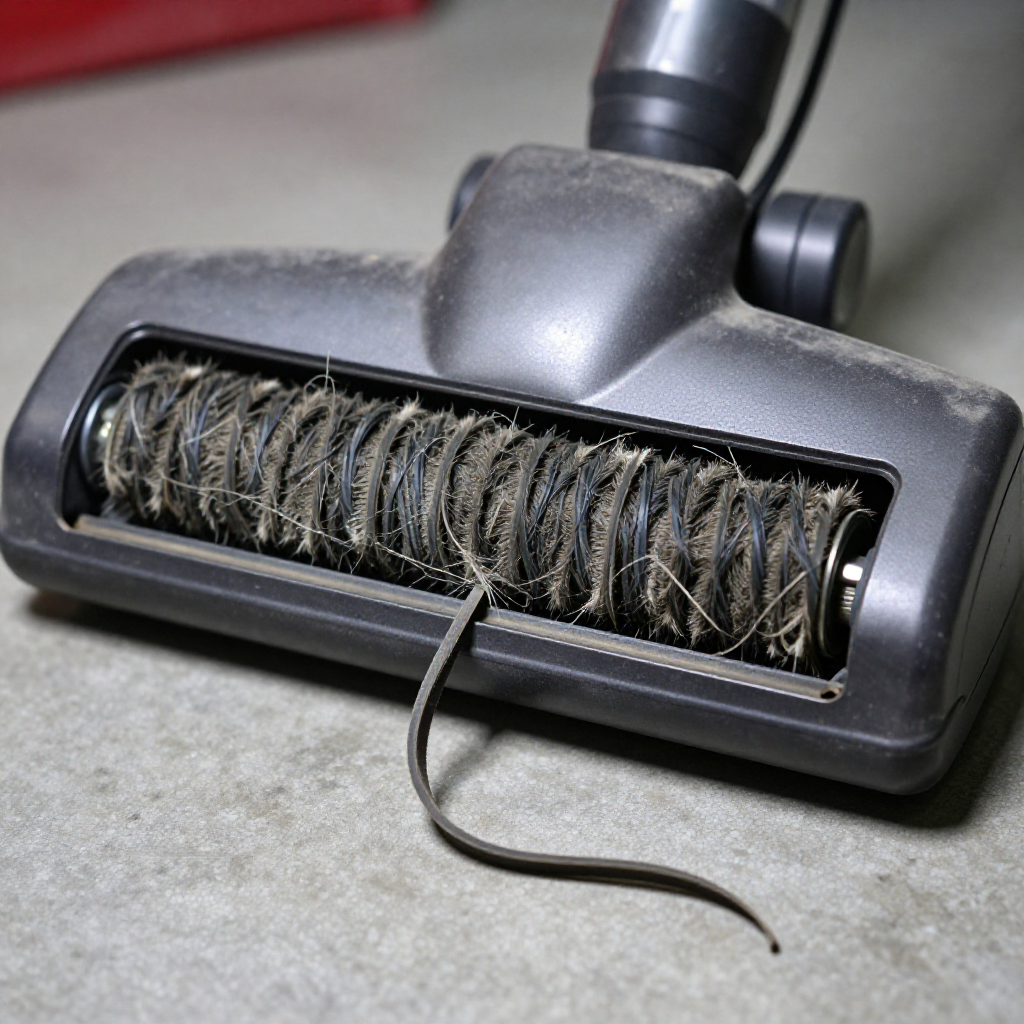

Unplug the vacuum and flip it over to access the brush roll cover

Stop running the vacuum — running it with a snapped belt lets the motor shaft spin against the melted belt, leaving rubber residue that makes the new belt slip. Unplug the vacuum. Flip it over onto a towel to protect your floor from scratches. Remove the screws holding the bottom cover plate — they're usually Phillips-head and there are four to six of them. Pull the cover off and set it aside. You will immediately see the brush roll and whatever is left of the old belt.

visibility3. Visual Guidance

See what's happening and how to try the first recovery step.

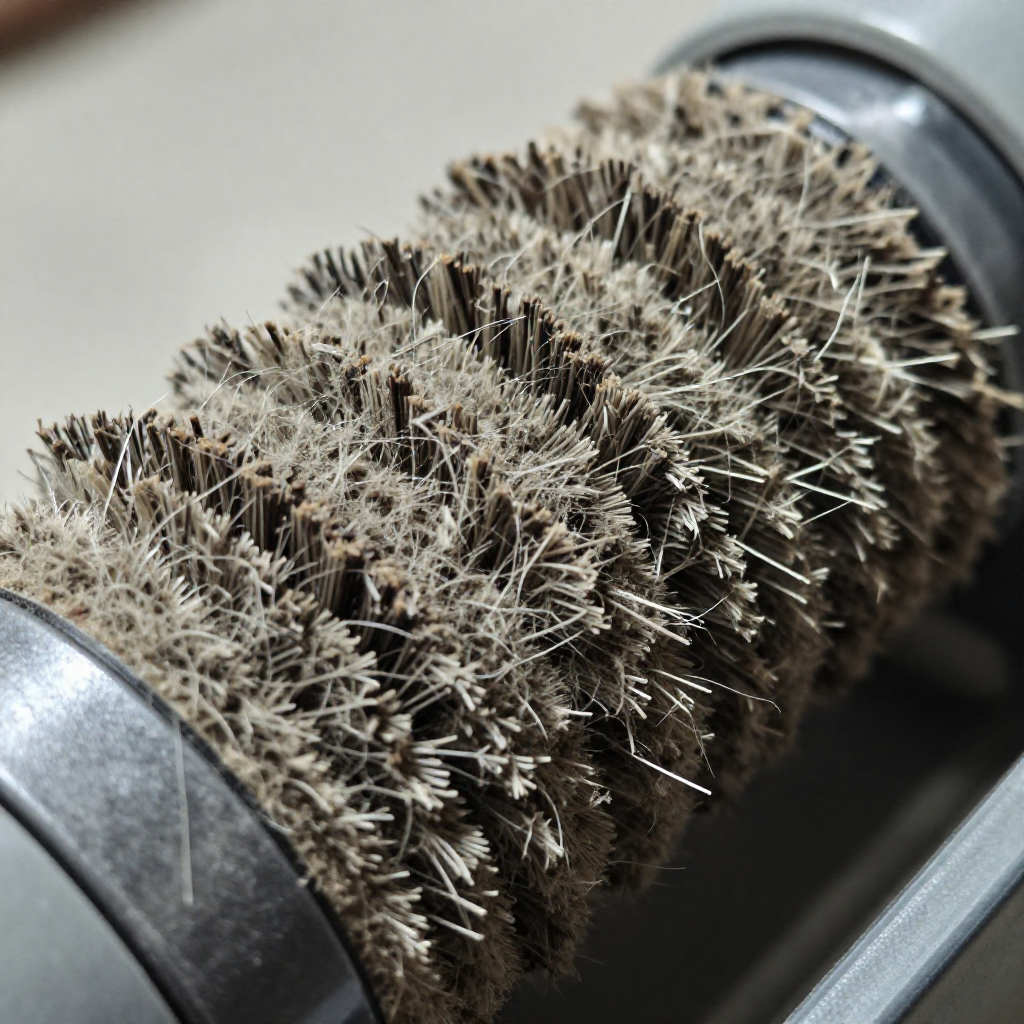

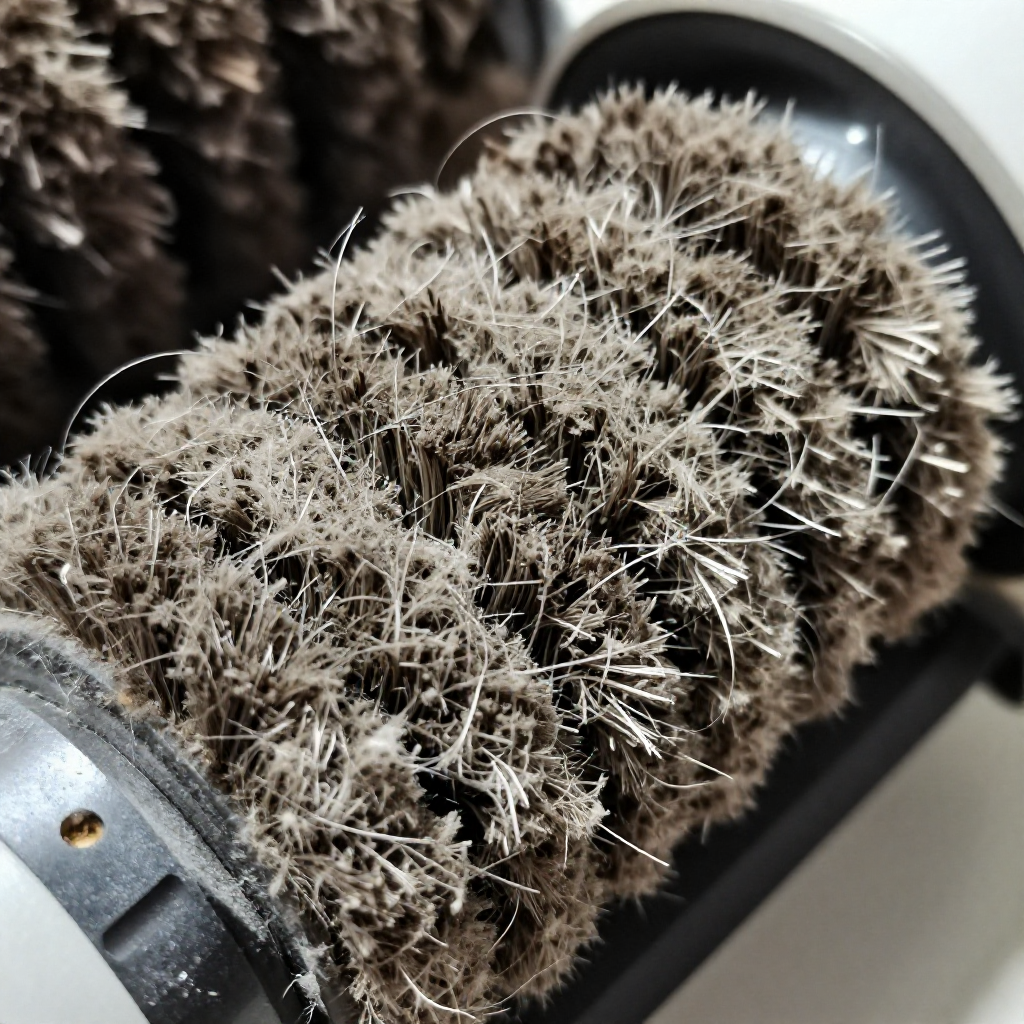

Remove the brush roll and clean it completelyLift the brush roll out of its end slots. Use scissors or a seam ripper to cut through the hair, string, and carpet fibers wrapped around the roller. Work from one end to the other — you might pull out a fistful of debris. Clean the end caps and bearing areas with a dry cloth. Spin the brush roll by hand once it's clean — it should turn freely with no grinding or wobble. If the bearings feel crunchy, replace the brush roll too.

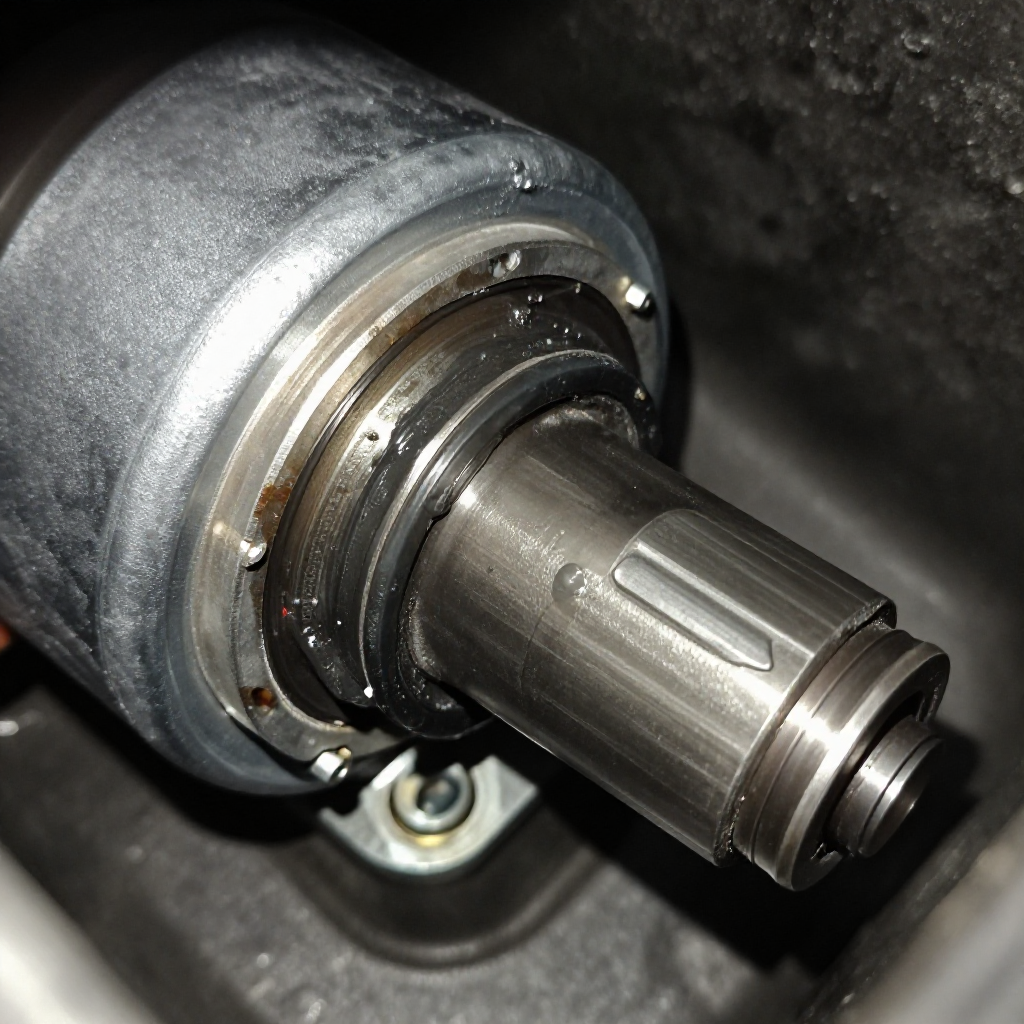

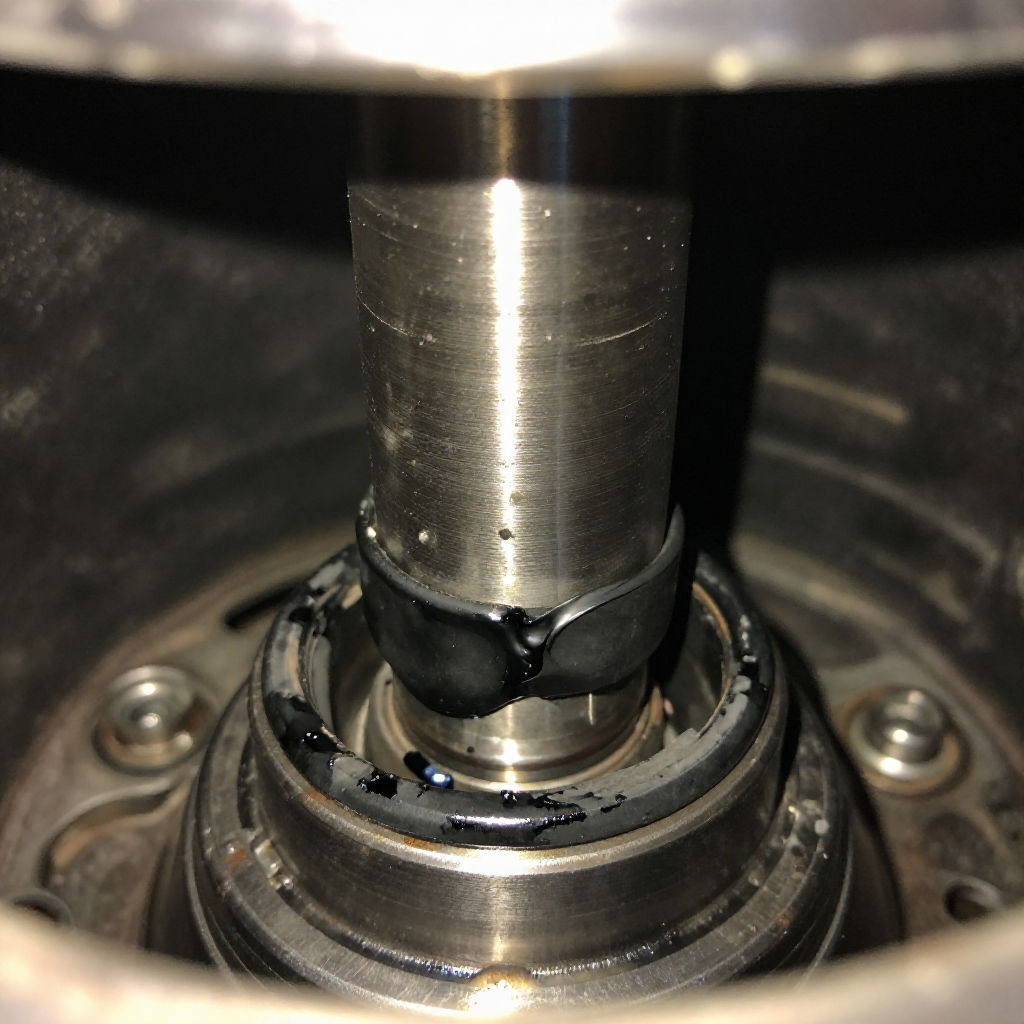

Clean the motor shaft and install the new beltLook at the metal motor shaft — melted rubber from the old belt will be caked onto it. Scrape it off with a flathead screwdriver or a razor blade, being careful not to gouge the shaft. Loop the new belt around the motor shaft first, then stretch the other end over the brush roll. The belt should be tight — if you can easily slip it on, it is the wrong size.

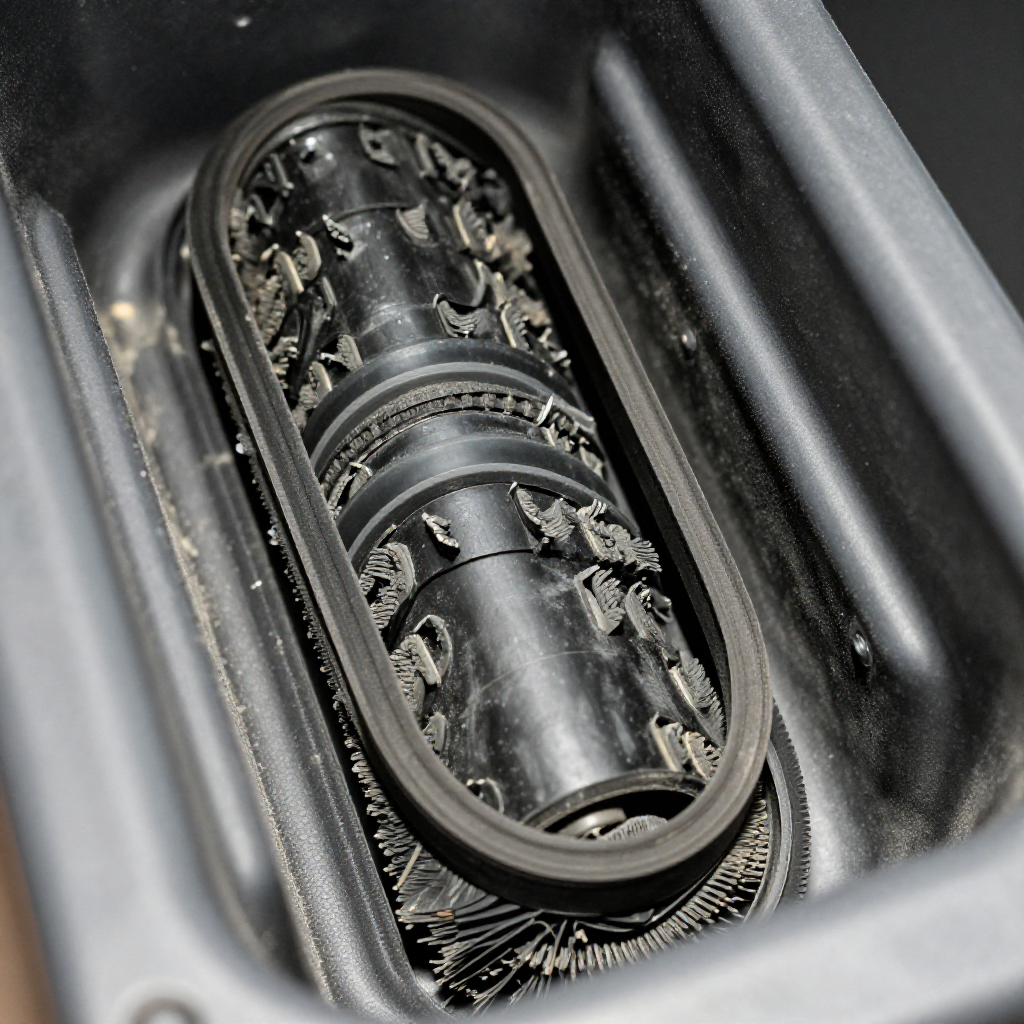

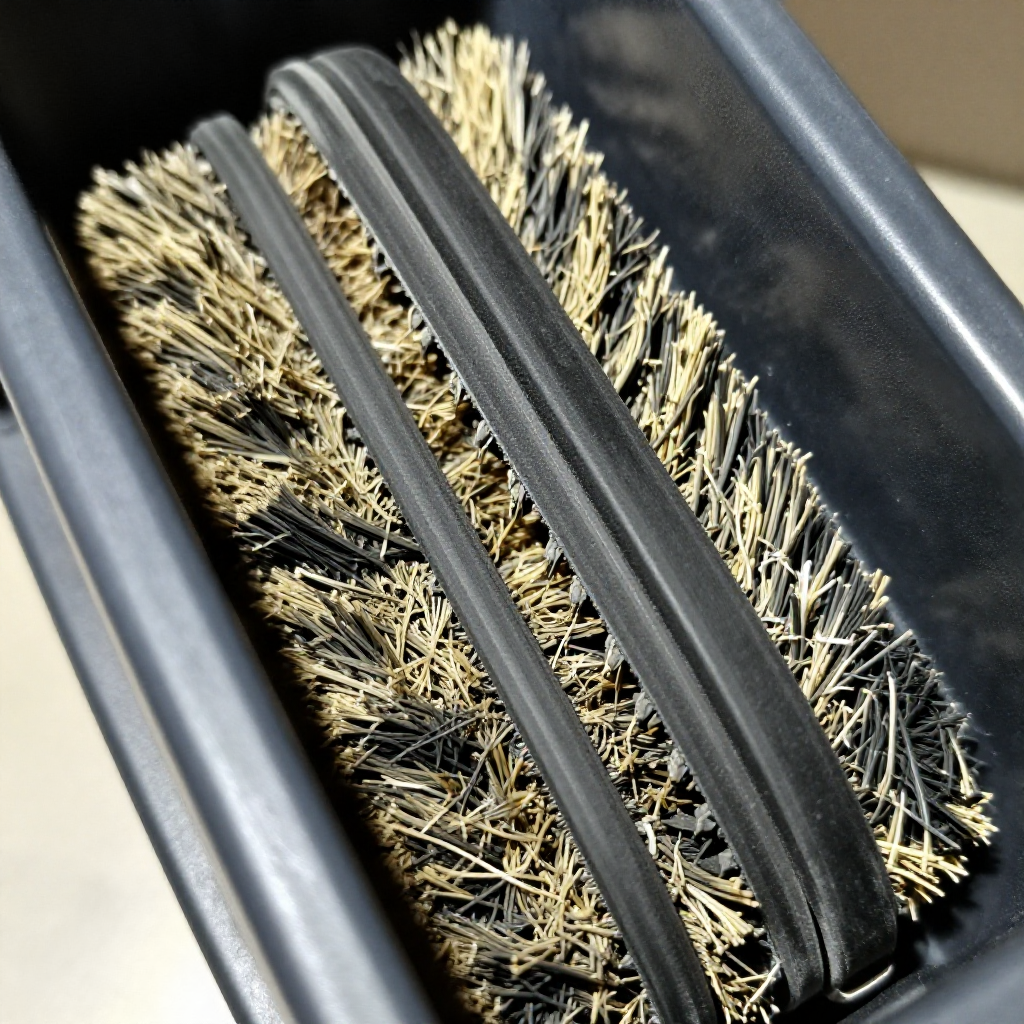

Seat the brush roll and test rotation by handSlide the brush roll back into its end slots, making sure the belt runs straight in the center of the roller's belt channel. The brush roll end caps must seat fully in each slot. Spin the brush roll by hand — it should turn the motor shaft through the belt with firm resistance. If the belt slips or the roller binds, the belt is misrouted or the brush roll isn't seated correctly.

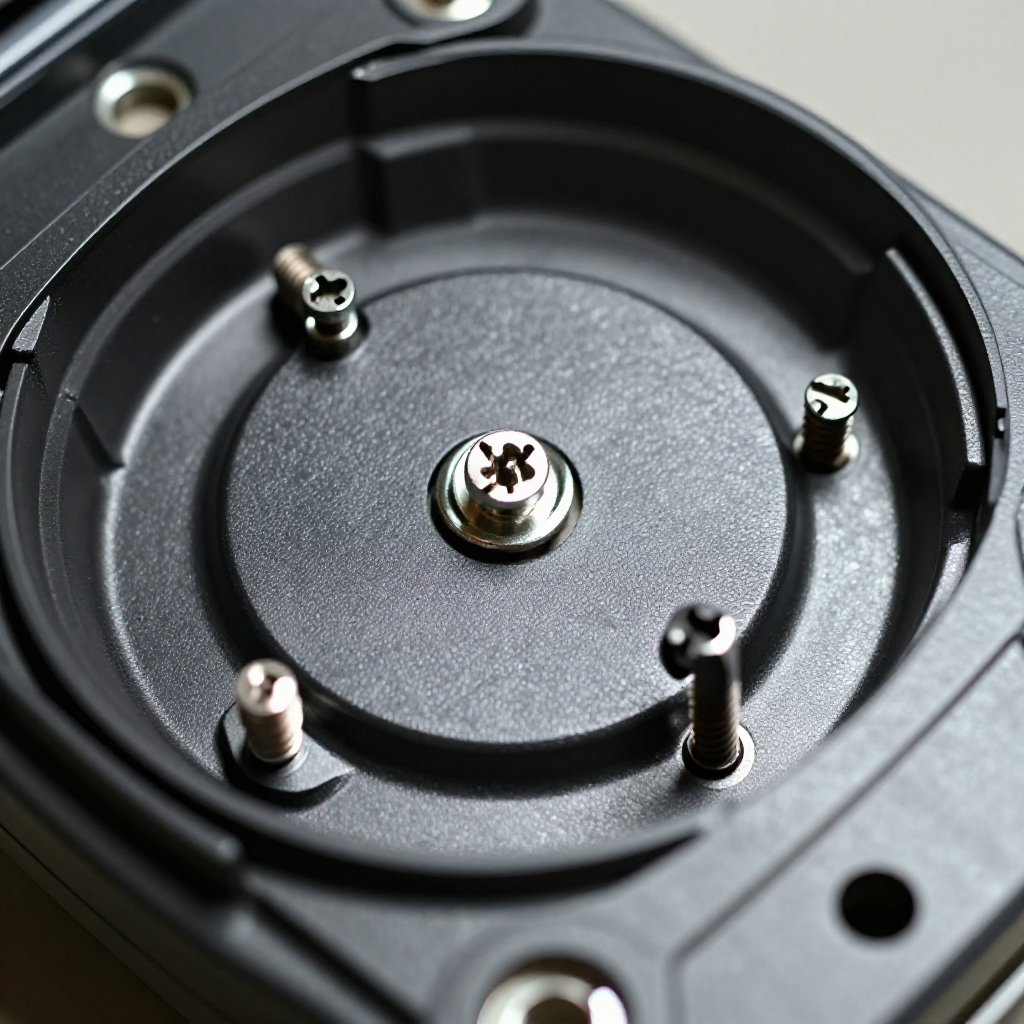

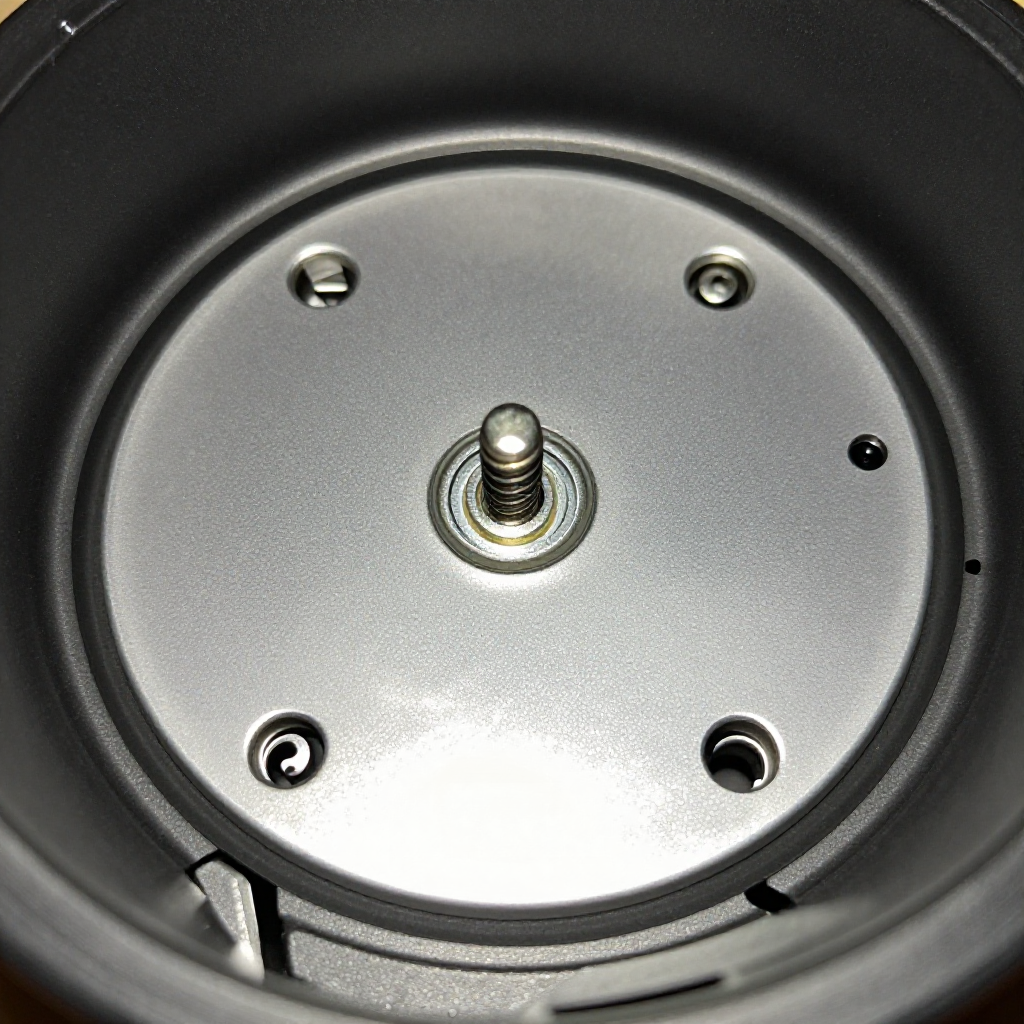

Reinstall the bottom plate and testPut the bottom cover back on and tighten all screws evenly. Do not overtighten — cracking the plastic cover plate means ordering a replacement. Plug the vacuum in, turn it on, and check that the brush roll spins. Run it on a carpet scrap or rug for 30 seconds, then flip it over and confirm the belt is still seated correctly and not riding up the side of the pulley.

autorenew4. If That Doesn't Work

Try the next recovery options.

swap_horiz

Replace a brush roll with seized bearingsIf the brush roll won't spin freely after cleaning, the internal bearings have seized. Order a replacement brush roll specific to your vacuum model. They cost $15-30 and swap out in the same way as the belt replacement.

chevron_right

build

Check the belt tensioner if the new belt keeps slippingSome vacuums have a spring-loaded belt tensioner that keeps the belt tight. If the tensioner spring is broken or the arm is seized, the belt will slip no matter how new it is. Replace the tensioner assembly if it doesn't move freely.

chevron_right

Frequently Asked Questions

How often should I replace my vacuum belt?expand_more

Every 6 to 12 months, or whenever the brush roll starts to slow down on carpet and you smell rubber. Even if the belt looks fine, it stretches and hardens with age. Keep a spare belt in your cleaning supply closet.

Can I use any vacuum belt or does it need to be model-specific?expand_more

Belt sizes are not universal. Using the wrong belt — even if it physically fits — can run the brush roll at the wrong speed or slip under load. Look up your vacuum model number on the nameplate and buy the belt listed in the manual or parts diagram.

My new belt snapped after one use — what did I do wrong?expand_more

The belt was probably the wrong size, or the brush roll was still jammed with debris that you missed. Another possibility: the motor shaft still had melted rubber residue on it, which heated the new belt and caused it to fail. Always clean the motor shaft completely before installing a new belt.

warning5. Stop DIY If

Don't continue if any of these apply.

reportThe motor shaft is visibly bent or wobbles when you spin it by hand — this will destroy new belts within minutes.

reportYou see melted or burned plastic around the motor housing or brush roll area, indicating the motor overheated.

reportThe vacuum was running with a seized brush roll for more than a few minutes — the motor may have been damaged and could be a fire risk.
