Sprinkler Head Stuck Down and Won't Pop Up

A sprinkler head that won't rise leaves dead grass and wasted water. Get it unstuck without breaking the riser or digging up the whole zone.

Category:Outdoor
Difficulty:Easy
Time:15 minutes
Success:50%
Updated:May 22, 2026

quick_referenceQuick Answer

For Sprinkler Head Stuck Down and Won't Pop Up, start with "Clean the riser seal and body collar by hand": Pull the riser up gently with your fingers — don't yank it with pliers or you'll score the shaft. Once it's up, wipe the shaft and the wiper seal with a damp rag. Grit trapped in the seal is what's hanging it up. Press the riser down and let it spring back up a few times. If it moves freely now, run the zone and confirm it pops. Stop DIY if water pressure drops across the entire system and you can't identify the cause — you may have a main line break. This is listed as a easy recovery and usually takes about 15 minutes.

verifiedGuide Snapshot

Repair areaOutdoor
Estimated time15 minutes
DifficultyEasy
Stop conditions4

Last updated May 22, 2026. Review the stop conditions before continuing.

account_treeRecovery State

DeviceSprinkler Head
Current stateWont Pop Up
Specific stateRiser Stuck In Body
Failed stepSprinkler Zone Activation
Likely failure typeMechanical Jam
DIY boundaryDIY recovery first
paymentsCost decision

help1. Understand the Problem

Sprinkler heads get stuck down when dirt, grass clippings, or hard-water scale jam the riser seal. It often happens after mowing — debris gets packed around the head, and the wiper seal can't slide. Sometimes the internal spring snaps from age or freeze damage, so the head has nothing pushing it up.

build_circle2. Try This First

Best First Step

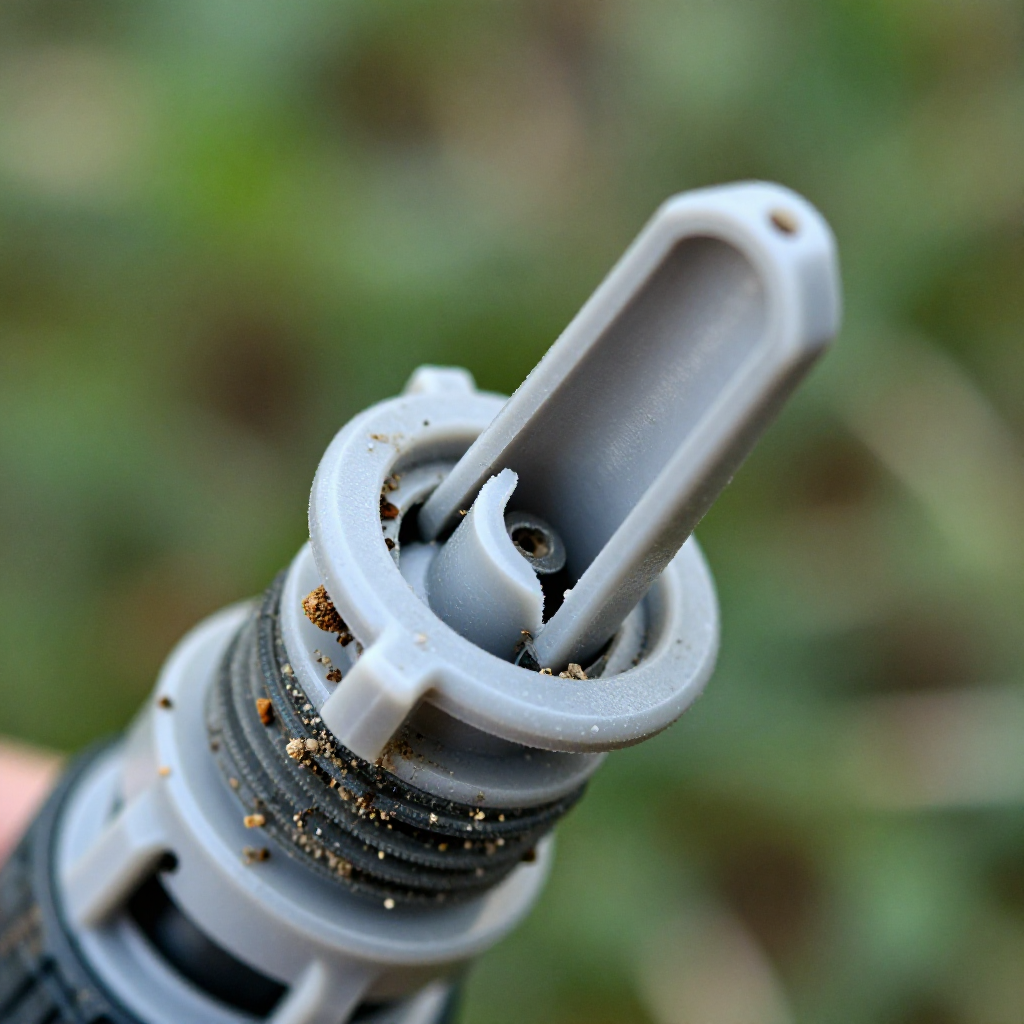

Clean the riser seal and body collar by hand

Clean the riser seal and body collar by hand

Pull the riser up gently with your fingers — don't yank it with pliers or you'll score the shaft. Once it's up, wipe the shaft and the wiper seal with a damp rag. Grit trapped in the seal is what's hanging it up. Press the riser down and let it spring back up a few times. If it moves freely now, run the zone and confirm it pops.

visibility3. Visual Guidance

See what's happening and how to try the first recovery step.

1

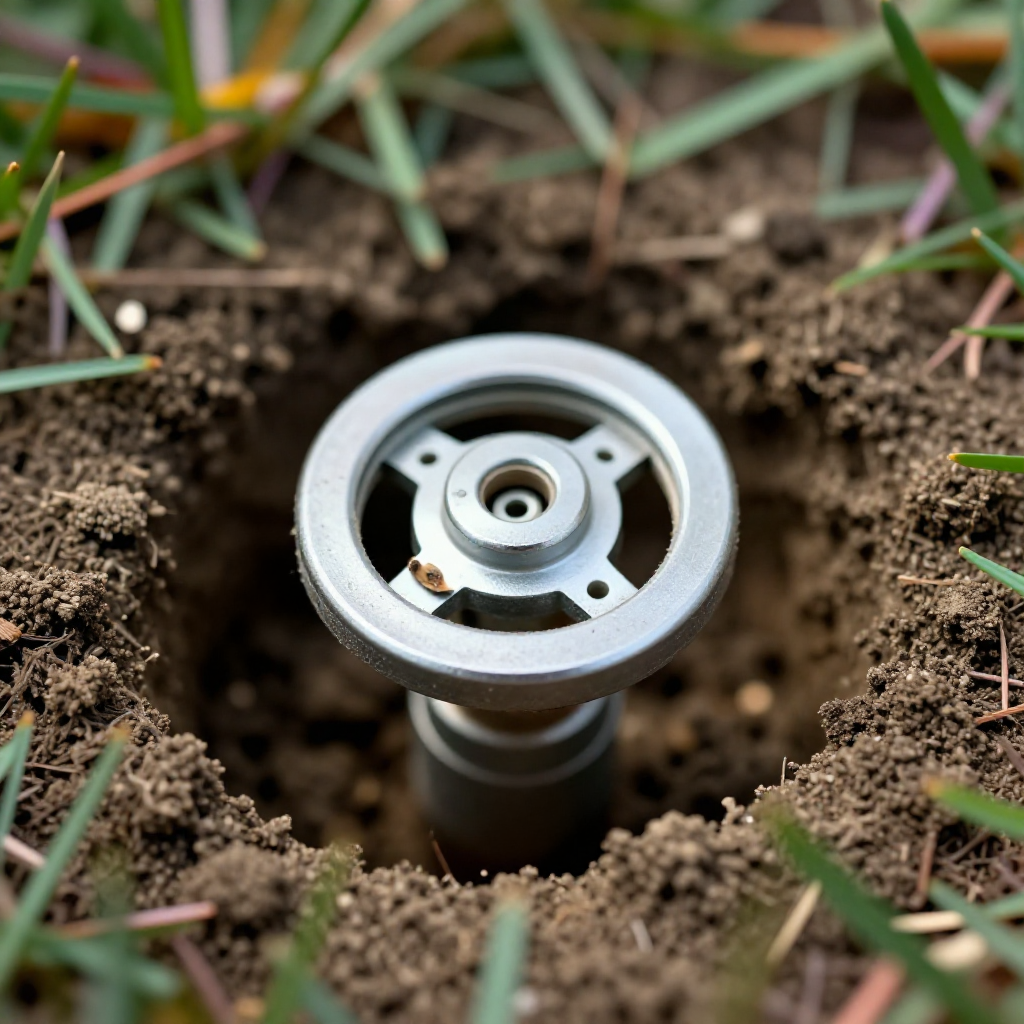

Dig around the head to expose the body
Dig around the head to expose the bodyUse a hand trowel to cut a 3-inch ring around the sprinkler head. Clear enough soil so the body collar is fully visible. Don't chop into the PVC lateral line underneath — go slow at the base.
2

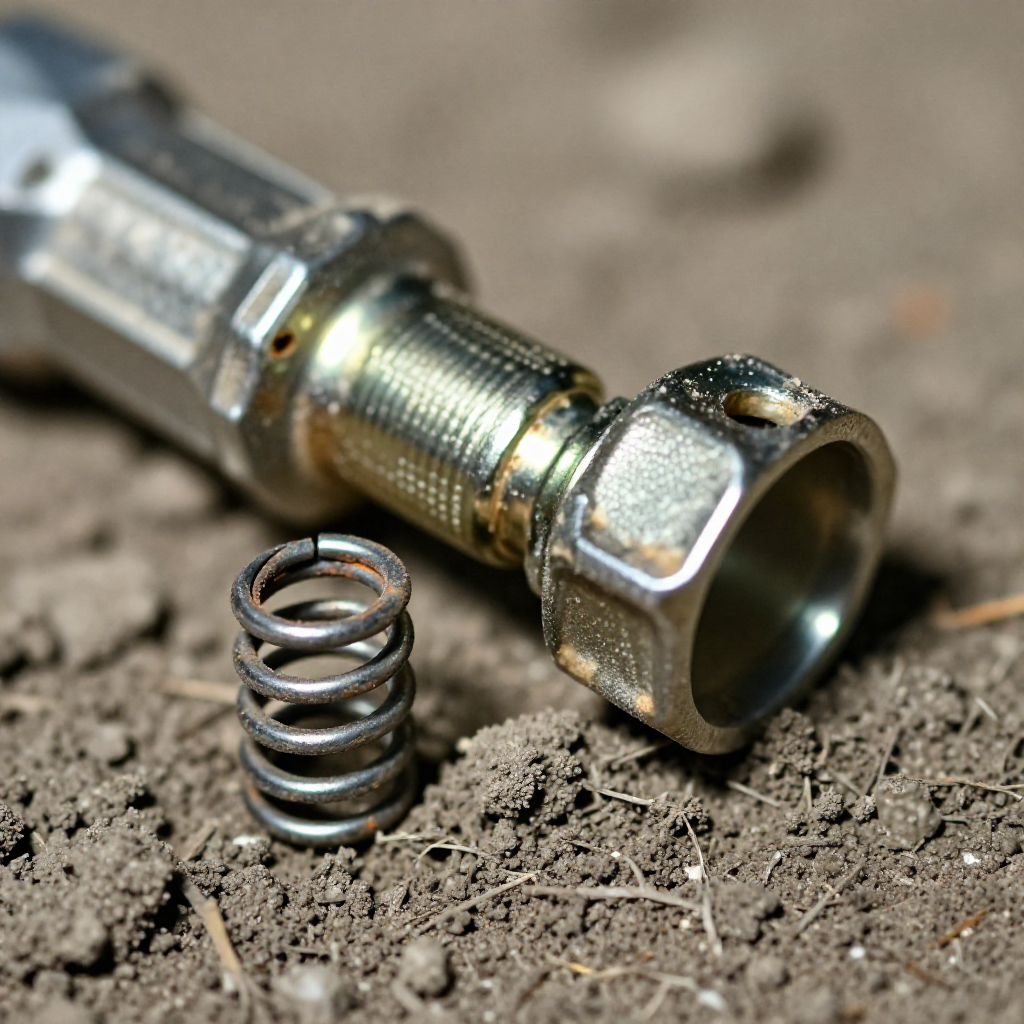

Check and replace the internal spring if broken
Check and replace the internal spring if brokenUnscrew the cap from the body. Pull out the riser assembly. If the spring is in pieces or rusted through, take it to a hardware store and match it — most residential heads use a standard 4-inch spring. Drop the new spring in, reassemble, and test.
3

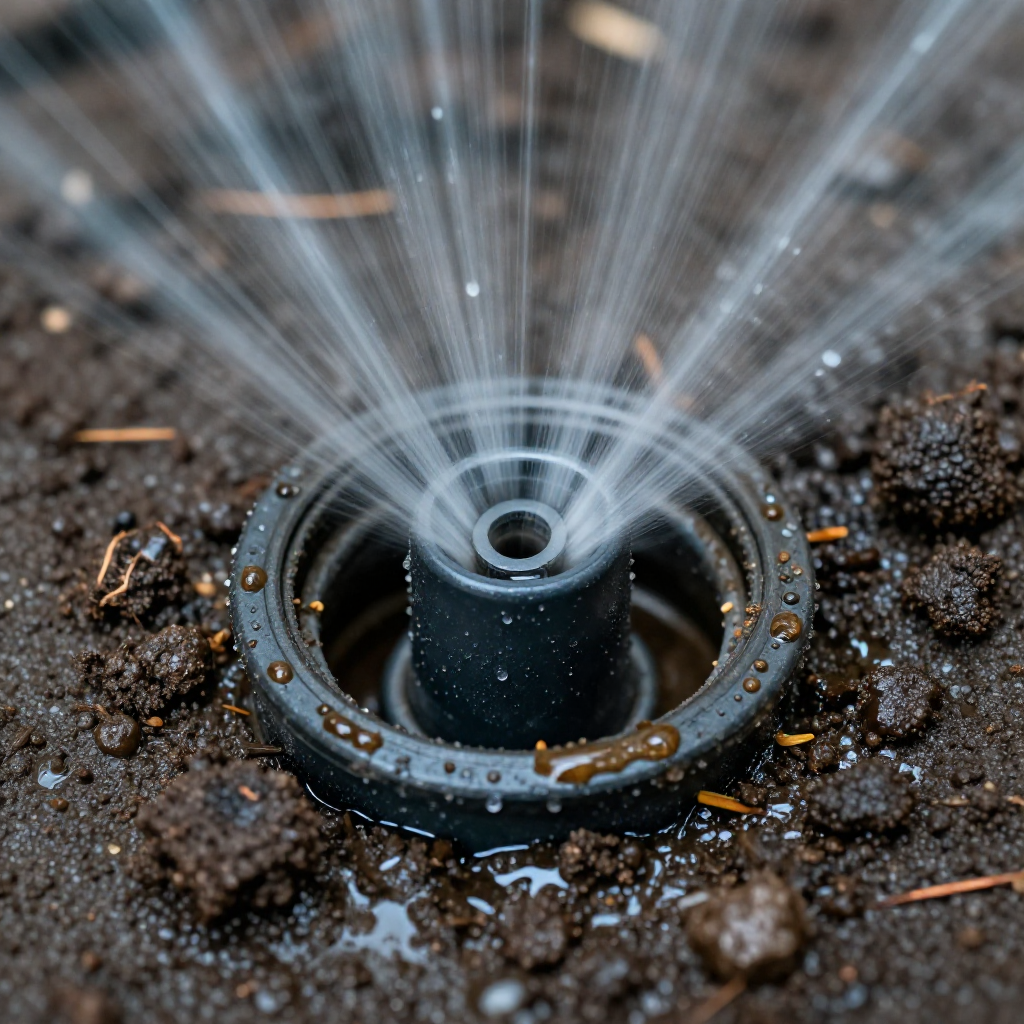

Flush the line before reinstalling the head
Flush the line before reinstalling the headWith the head still removed, turn on the zone for 10 seconds. Water will blast out the open body — this flushes any dirt that got into the lateral line. Turn the zone off, screw the head back in, and test.

autorenew4. If That Doesn't Work

Try the next recovery options.

lubricant
Lubricate the wiper seal with silicone sprayIf the riser moves but feels sticky, pull it up and spray silicone lubricant (not WD-40 — it attracts dirt) on the shaft and seal. Work it up and down until smooth.
chevron_right
build
Replace the entire head assemblyIf the body threads are cracked, the seal is shredded, or the head is 10+ years old, unscrew the whole body from the riser pipe and thread on a matching replacement. Match the spray pattern and radius.
chevron_right
valve
Check zone valve for low pressureIf multiple heads on the same zone aren't popping up, the zone valve may not be opening fully. Check the valve box for debris or a stuck solenoid — this is a system problem, not just one head.
chevron_right

Frequently Asked Questions

Why does my sprinkler head come up halfway and stop?expand_more
Halfway pop-up usually means grit in the seal or a weak spring. Clean the riser shaft first — if that doesn't fix it, the spring has lost tension and needs replacing.
Can I use WD-40 to free a stuck sprinkler head?expand_more
Don't. WD-40 is a solvent, not a lubricant — it dries out and attracts dirt that'll jam the seal worse. Use silicone spray made for rubber and plastic.
How do I know if the whole sprinkler head needs replacing?expand_more
Replace it if the body is cracked, the spray nozzle is deformed, the wiper seal is torn, or the internal threads are stripped. If it's just dirt or a spring, those are fixable.
Is it normal for sprinkler heads to get stuck after winter?expand_more
Yes, especially in freeze-thaw areas. Soil shifts, dirt gets pushed into the seal, and springs can rust over winter. First-spring cleaning is routine maintenance, not a failure.

warning5. Stop DIY If

Don't continue if any of these apply.

reportWater pressure drops across the entire system and you can't identify the cause — you may have a main line break.
reportThe PVC lateral line under the head is cracked or sheared off — digging deeper can turn a $5 fix into a trench job.
reportYou smell gas or hit a buried utility line while digging — stop immediately and call 811 before doing anything else.
reportThe zone valve solenoid is burned out or the controller wiring is corroded — electrical troubleshooting at the valve box needs a pro.
