Whole-House Humidifier Not Working? Check Solenoid Circuit

If your whole-house humidifier isn't adding moisture, a failed solenoid or electrical fault may be to blame. Learn how to test and replace it.

Category:HVAC

Difficulty:Moderate

Time:30 min

Success:50%

Updated:Aug 1, 2026

quick_referenceQuick Answer

For Whole-House Humidifier Not Working? Check Solenoid Circuit, start with "Turn off furnace power and water": Switch off the furnace at the breaker and close the saddle valve or dedicated shut-off for the humidifier water line. This prevents unexpected operation. Stop DIY if there is water damage around the furnace or ductwork. This is listed as a moderate recovery and usually takes about 30 min.

verifiedGuide Snapshot

Repair areaHVAC

Estimated time30 min

DifficultyModerate

Stop conditions3

Last updated Aug 1, 2026. Review the stop conditions before continuing.

account_treeRecovery State

DeviceWhole House Humidifier

Current stateNo Humidity

Specific stateSolenoid Failure

Failed stepSolenoid No Power

Likely failure typeElectrical Fault

DIY boundaryDIY recovery first

paymentsCost decision

help1. Understand the Problem

A whole-house humidifier relies on an electromagnetic solenoid to open a water valve when the furnace runs. If the solenoid loses power, is gummed up with minerals, or fails mechanically, water stops flowing and indoor humidity drops. This guide walks through diagnosing the electrical side of the solenoid circuit safely.

build_circle2. Try This First

Best First Step

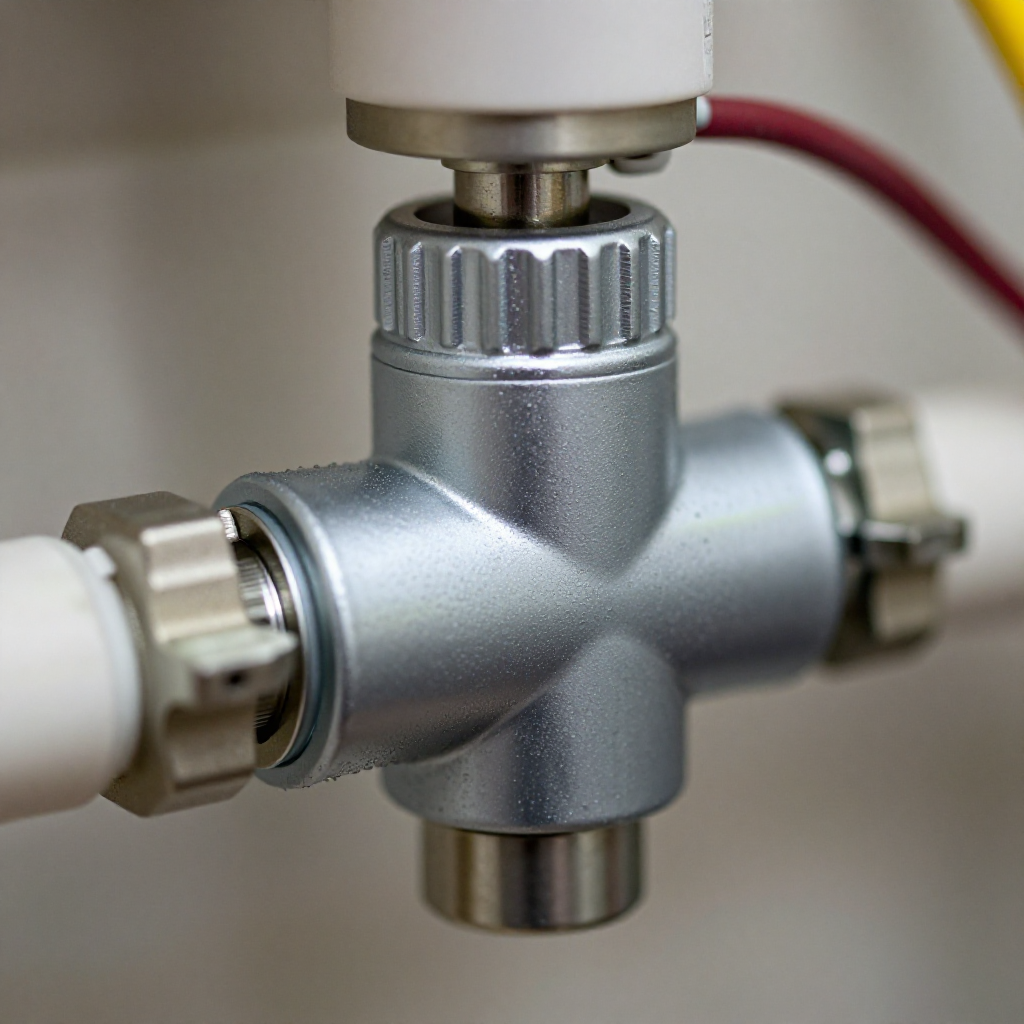

Turn off furnace power and water

Switch off the furnace at the breaker and close the saddle valve or dedicated shut-off for the humidifier water line. This prevents unexpected operation.

visibility3. Visual Guidance

See what's happening and how to try the first recovery step.

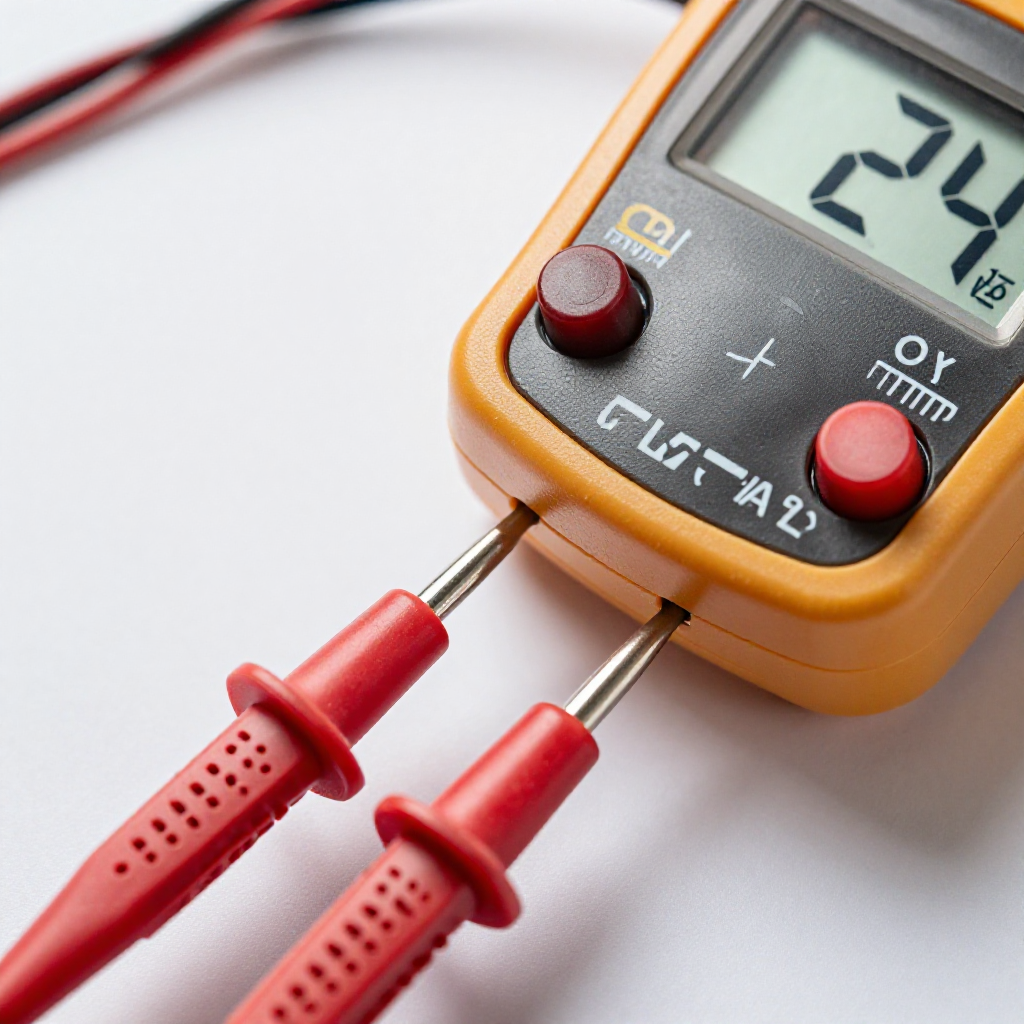

Locate the solenoid and test for voltageWith the furnace powered off, set a multimeter to AC voltage. Turn the thermostat to call for heat, then check that the humidistat sends 24V to the solenoid leads.

Check the solenoid coil resistanceIf voltage is present but valve doesn't hum, disconnect the wires and measure resistance across the coil. An open circuit means the coil has failed.

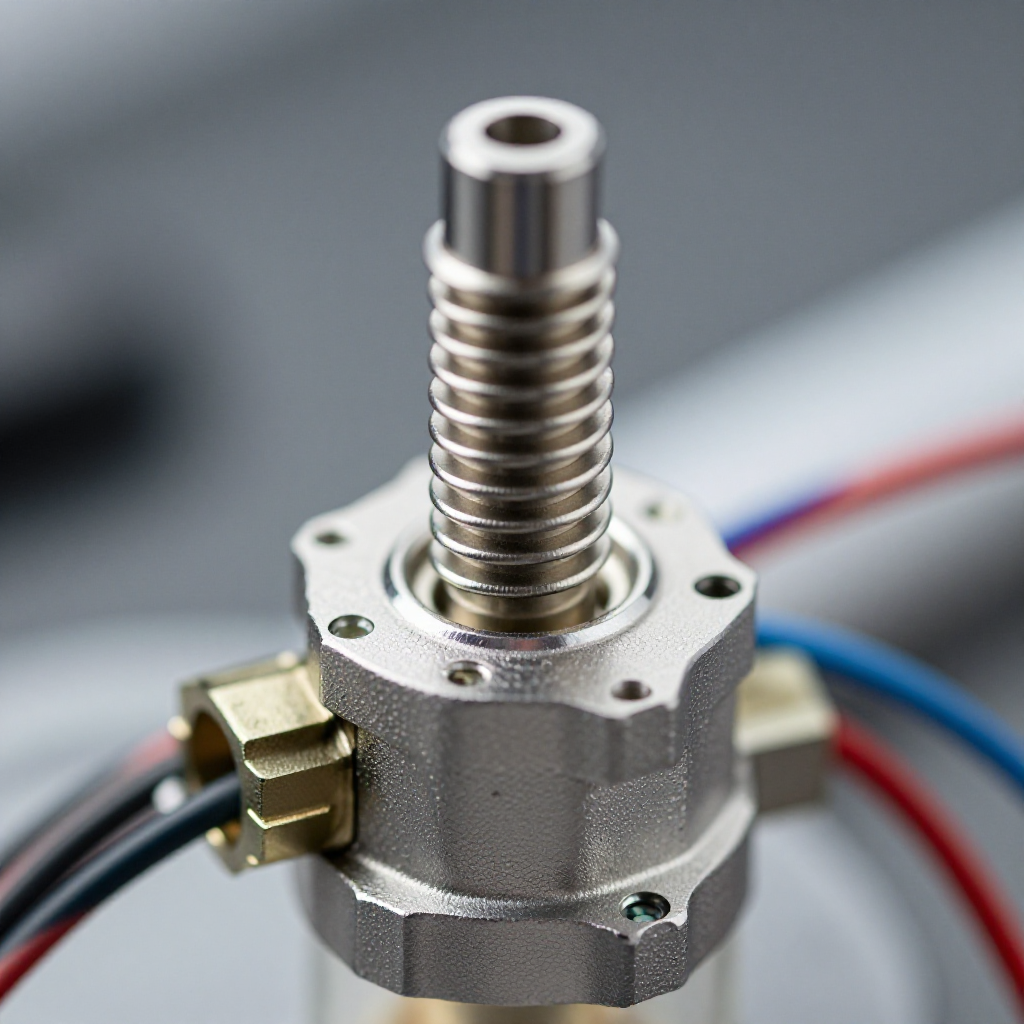

Remove and replace the solenoidUnthread the solenoid from the valve body. Install an identical replacement, making sure the plunger and O‑ring are seated correctly.

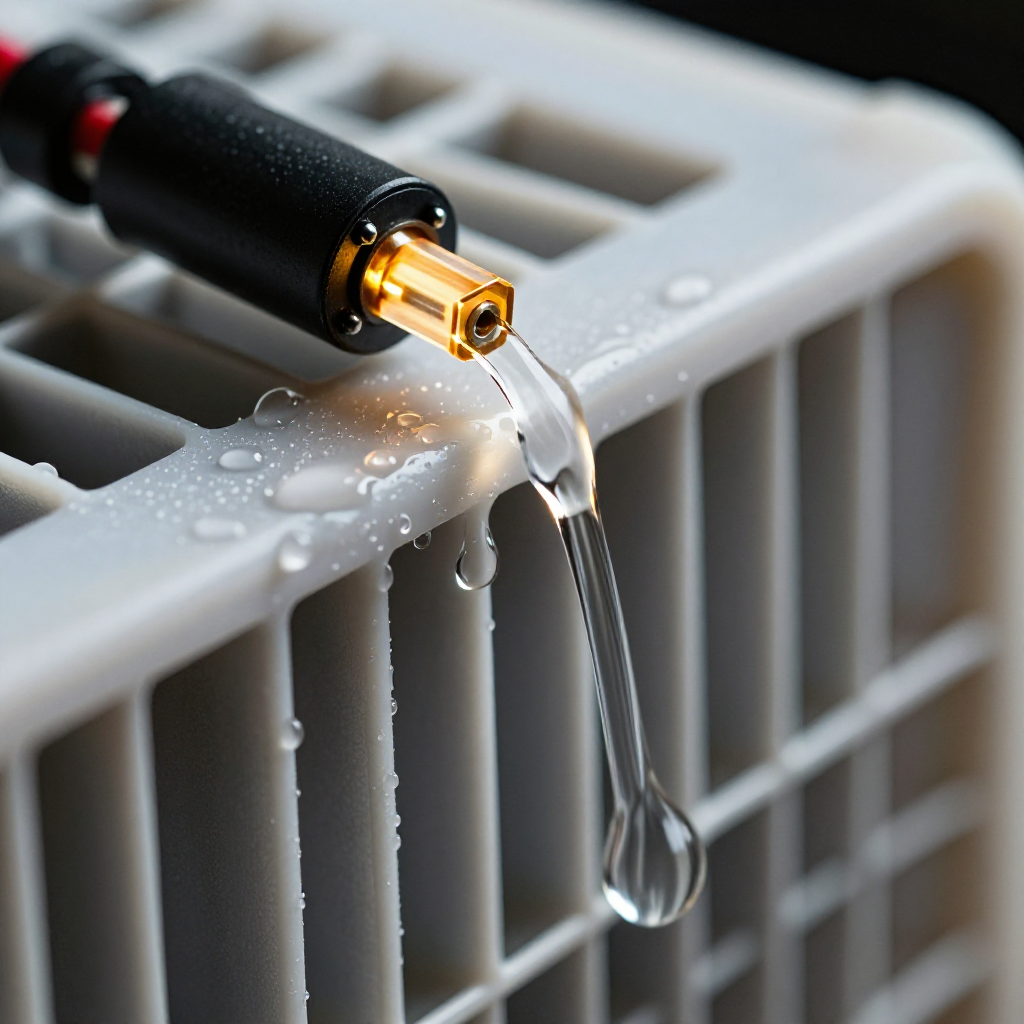

Restore power and verify operationTurn the breaker and water back on. Run the furnace; you should hear a click and see water trickling into the humidifier pad within a minute.

autorenew4. If That Doesn't Work

Try the next recovery options.

Clean a clogged water lineSediment can block the small water feed tube. Disconnect it and blow compressed air through or replace the tube.

chevron_right

Frequently Asked Questions

Why does my solenoid click but no water flows?expand_more

The plunger may be stuck or the inlet screen is clogged. Remove the valve and clean it. If that doesn't help, replace the entire valve body.

Can I test the solenoid without a multimeter?expand_more

You can use a non‑contact voltage tester to check for power at the leads, but a multimeter is needed to confirm the coil is intact.

What voltage should a humidifier solenoid receive?expand_more

Most whole‑house units use 24V AC. Check your unit’s label; using a 120V solenoid on a 24V system will burn out immediately.

warning5. Stop DIY If

Don't continue if any of these apply.

reportThere is water damage around the furnace or ductwork

reportHigh‑voltage wiring inside the furnace is exposed

reportThe humidifier control board is burned or faulty
