Doorbell Not Ringing? Check If Transformer Has Power

A silent doorbell often points to a failed transformer. Learn how to safely test and replace it to get your chime working again.

Category:Electrical
Difficulty:Moderate
Time:30 min
Success:50%
Updated:Aug 1, 2026

quick_referenceQuick Answer

For Doorbell Not Ringing? Check If Transformer Has Power, start with "Turn off power at the breaker": Locate the breaker that controls the doorbell circuit (often shared with a nearby light or hallway outlet). Switch it off and confirm no voltage at the transformer with a non-contact tester. Stop DIY if you are unsure about working inside the breaker panel. This is listed as a moderate recovery and usually takes about 30 min.

verifiedGuide Snapshot

Repair areaElectrical
Estimated time30 min
DifficultyModerate
Stop conditions3

Last updated Aug 1, 2026. Review the stop conditions before continuing.

account_treeRecovery State

DeviceDoorbell Transformer
Current stateNo Power
Specific stateTransformer Failure
Failed stepTransformer Burnt Out
Likely failure typeElectrical Fault
DIY boundaryDIY recovery first
paymentsCost decision

help1. Understand the Problem

The doorbell transformer steps down 120V house current to low voltage (usually 16–24V) that powers the chime. If the transformer burns out, no power reaches the button or chime, and the doorbell stays silent. This guide walks you through verifying that the transformer is at fault and swapping in a new one.

build_circle2. Try This First

Best First Step
Turn off power at the breaker

Turn off power at the breaker

Locate the breaker that controls the doorbell circuit (often shared with a nearby light or hallway outlet). Switch it off and confirm no voltage at the transformer with a non-contact tester.

visibility3. Visual Guidance

See what's happening and how to try the first recovery step.

1

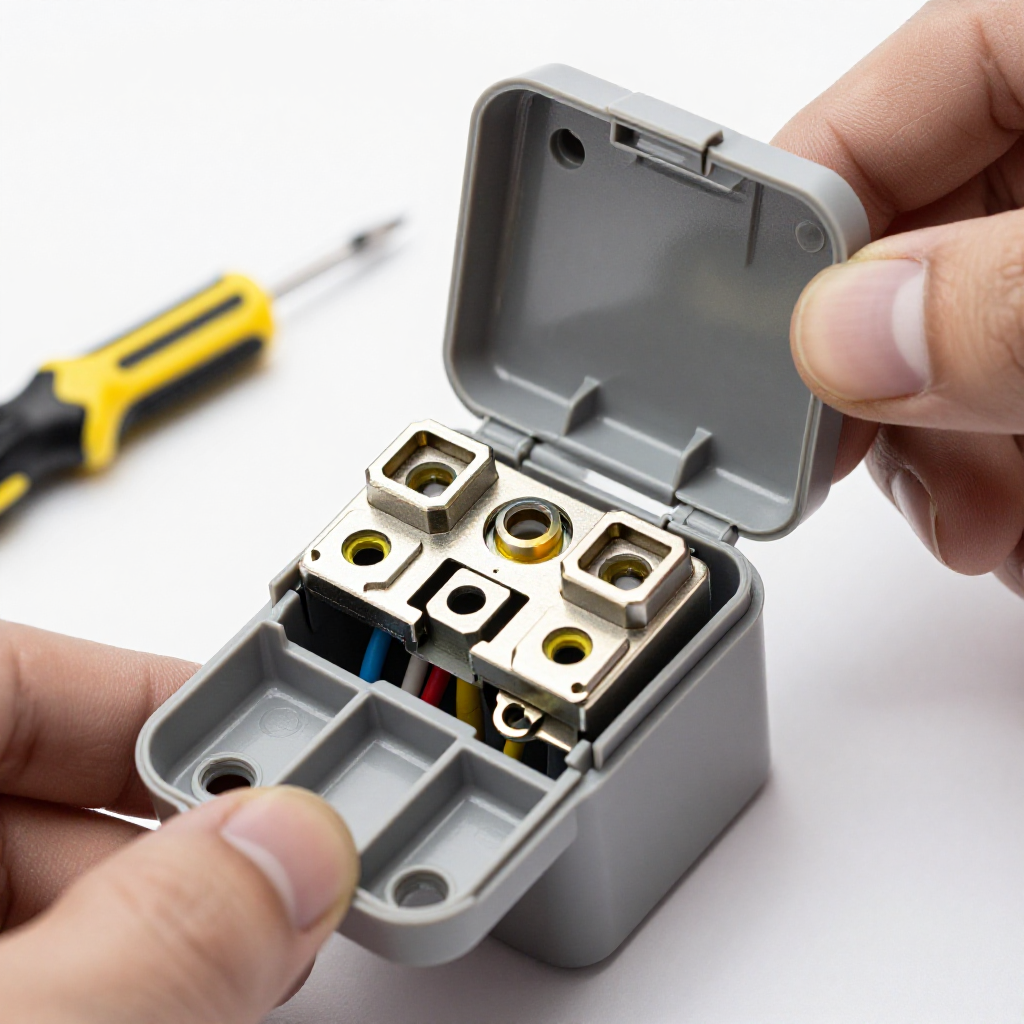

Remove the transformer cover
Remove the transformer coverUnscrew the cover plate to expose the high-voltage and low-voltage sides. Carefully disconnect the low-voltage wires.
2

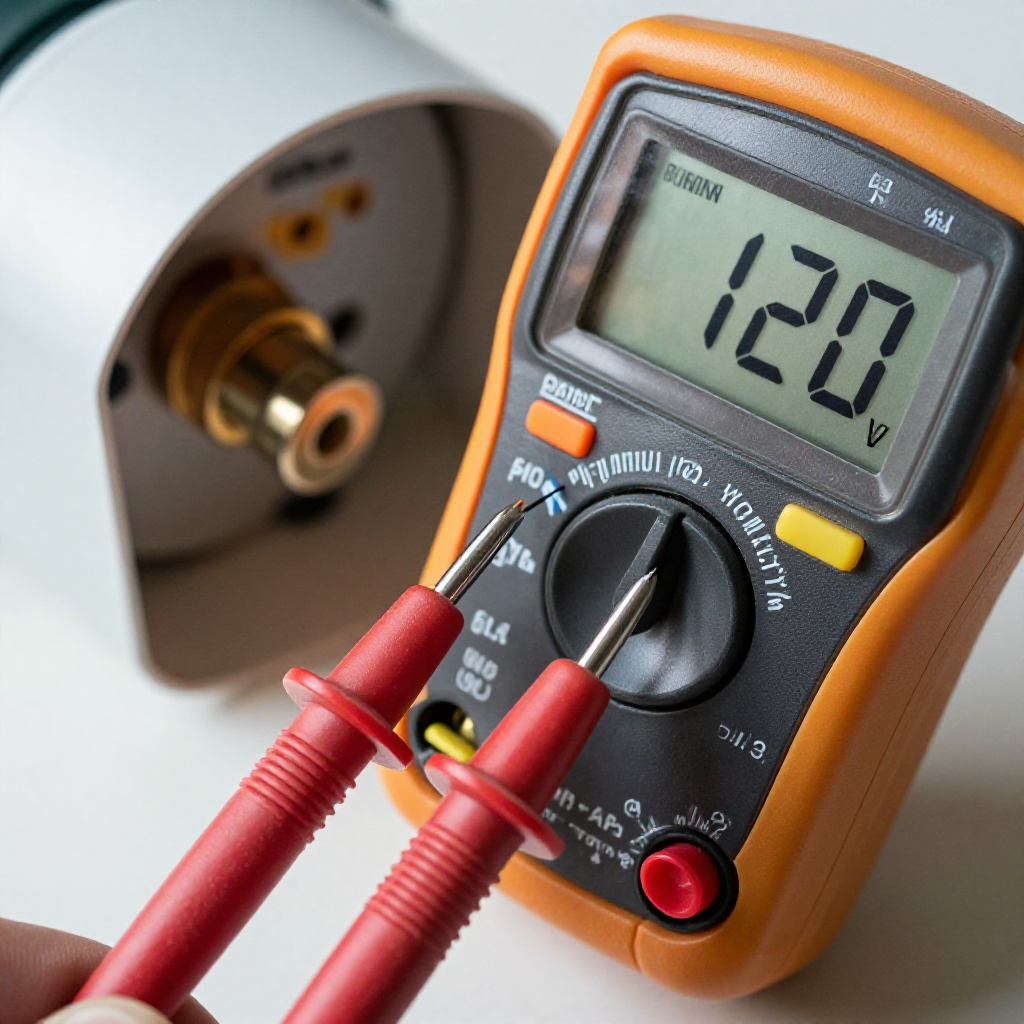

Test for voltage on the primary side
Test for voltage on the primary sideWith power still off, verify no voltage exists. Then momentarily restore power and use a multimeter to confirm 120V is reaching the transformer's input wires.
3

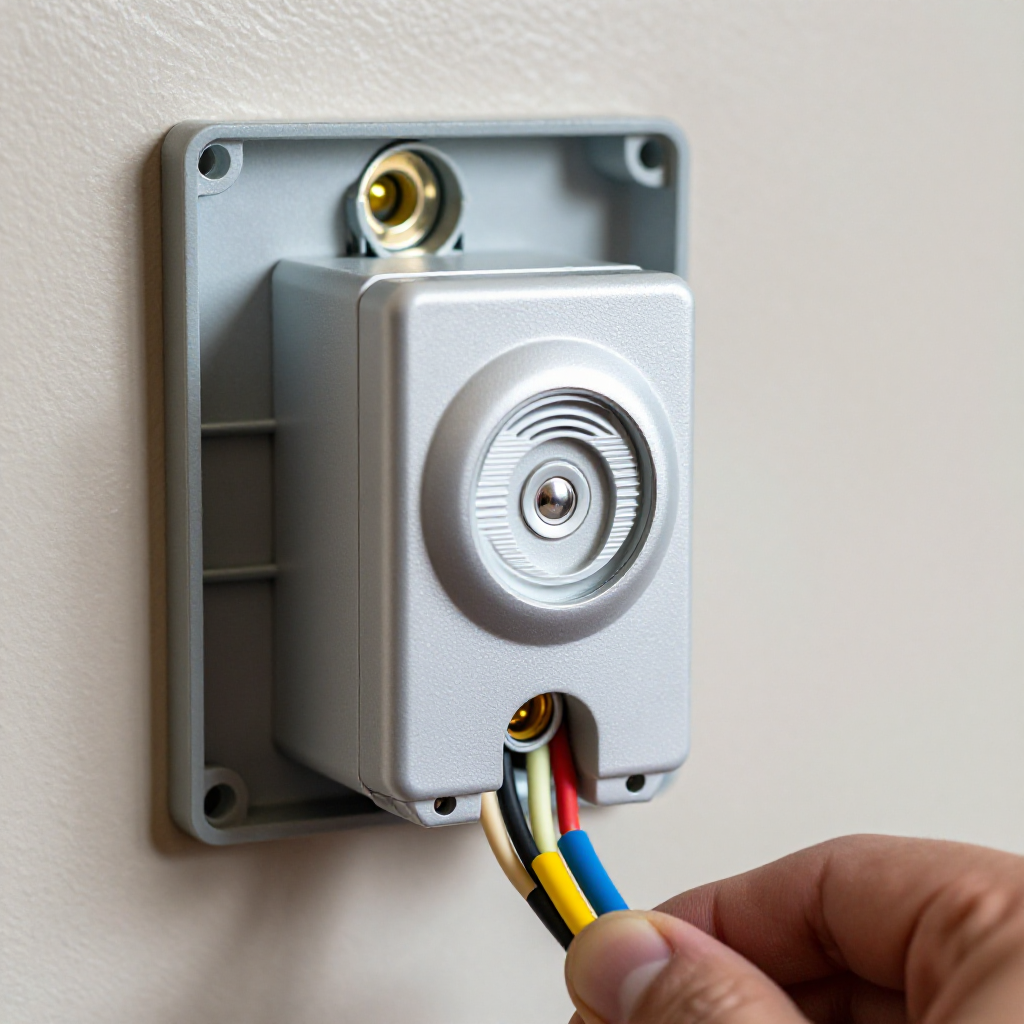

Install a new transformer
Install a new transformerDisconnect the failed transformer, match the voltage rating (ex: 16V 10VA) and mount the replacement. Reconnect high and low voltage wires tightly.
4

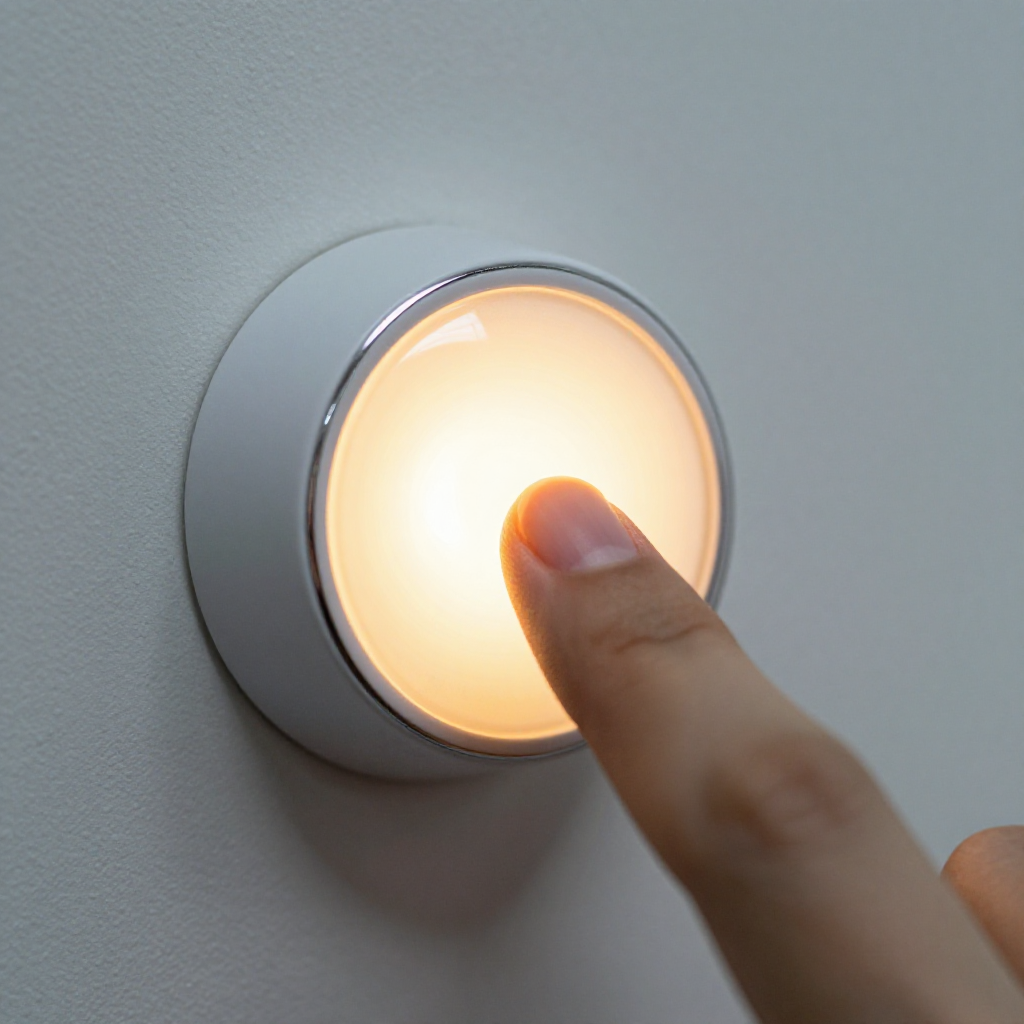

Restore power and test
Restore power and testTurn the breaker back on, then press the doorbell button. Listen for the chime and confirm the transformer is humming quietly.

autorenew4. If That Doesn't Work

Try the next recovery options.

Test wiring at the chime terminalsCheck for voltage at the chime to rule out a broken wire. If voltage is present but chime doesn't ring, replace the chime.
chevron_right

Frequently Asked Questions

How do I know if my transformer is bad?expand_more
If the chime and button are intact but you measure no low voltage at the chime terminals, and the transformer is receiving 120V, it has likely failed.
Can I use a higher voltage transformer?expand_more
Match the voltage required by your chime, usually 16V or 24V. A higher voltage can damage the chime or cause constant ringing.
Why did my transformer burn out?expand_more
Age, power surges, or a short in the button can cause overheating. Ensure the new transformer has adequate ventilation.

warning5. Stop DIY If

Don't continue if any of these apply.

reportYou are unsure about working inside the breaker panel
reportThe fuse blows immediately after replacement
reportNo voltage reaches the transformer despite the breaker being on
