Why Is My Dryer Not Heating But Still Tumbling?

A dryer that tumbles but does not heat often has a faulty heating element, thermal fuse, or thermostat. Here is how to test and replace them.

Category:Appliances

Difficulty:Moderate

Time:45 min

Success:50%

Updated:Jun 23, 2026

quick_referenceQuick Answer

For Why Is My Dryer Not Heating But Still Tumbling?, start with "Unplug the Dryer and Remove the Back Panel": Disconnect the dryer from power. Use a screwdriver to remove the screws on the back panel and set the panel aside. Stop DIY if you are uncomfortable using a multimeter. This is listed as a moderate recovery and usually takes about 45 min.

verifiedGuide Snapshot

Repair areaAppliances

Estimated time45 min

DifficultyModerate

Stop conditions3

Last updated Jun 23, 2026. Review the stop conditions before continuing.

account_treeRecovery State

DeviceDryer

Current stateNo Heat

Specific stateTumbling But Cold

Failed stepHeating Element Open

Likely failure typeElectrical Fault

DIY boundaryDIY recovery first

paymentsCost decision

help1. Understand the Problem

If your dryer runs but produces no heat, the problem is likely in the heating circuit. Common culprits include a blown thermal fuse, a failed heating element, or a defective cycling thermostat. These components can be tested with a multimeter and replaced individually.

build_circle2. Try This First

Best First Step

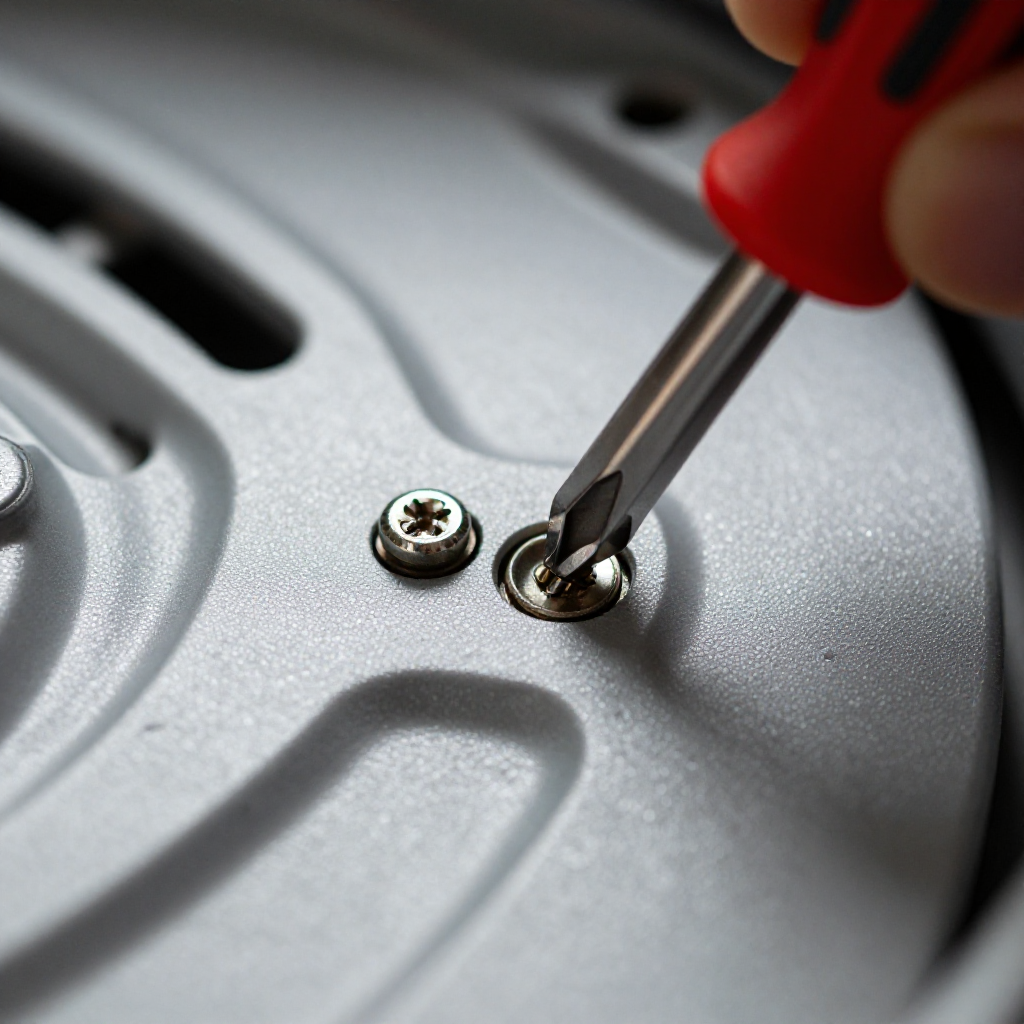

Unplug the Dryer and Remove the Back Panel

Disconnect the dryer from power. Use a screwdriver to remove the screws on the back panel and set the panel aside.

visibility3. Visual Guidance

See what's happening and how to try the first recovery step.

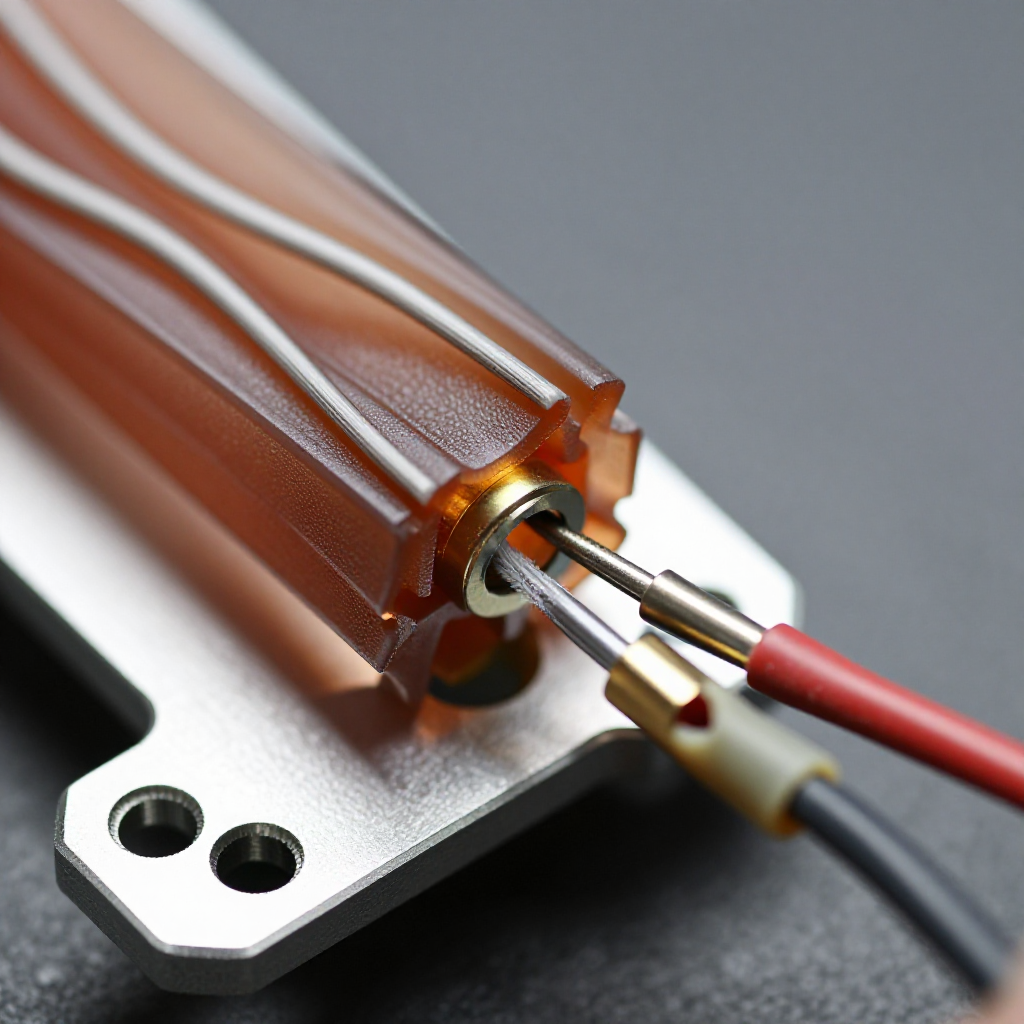

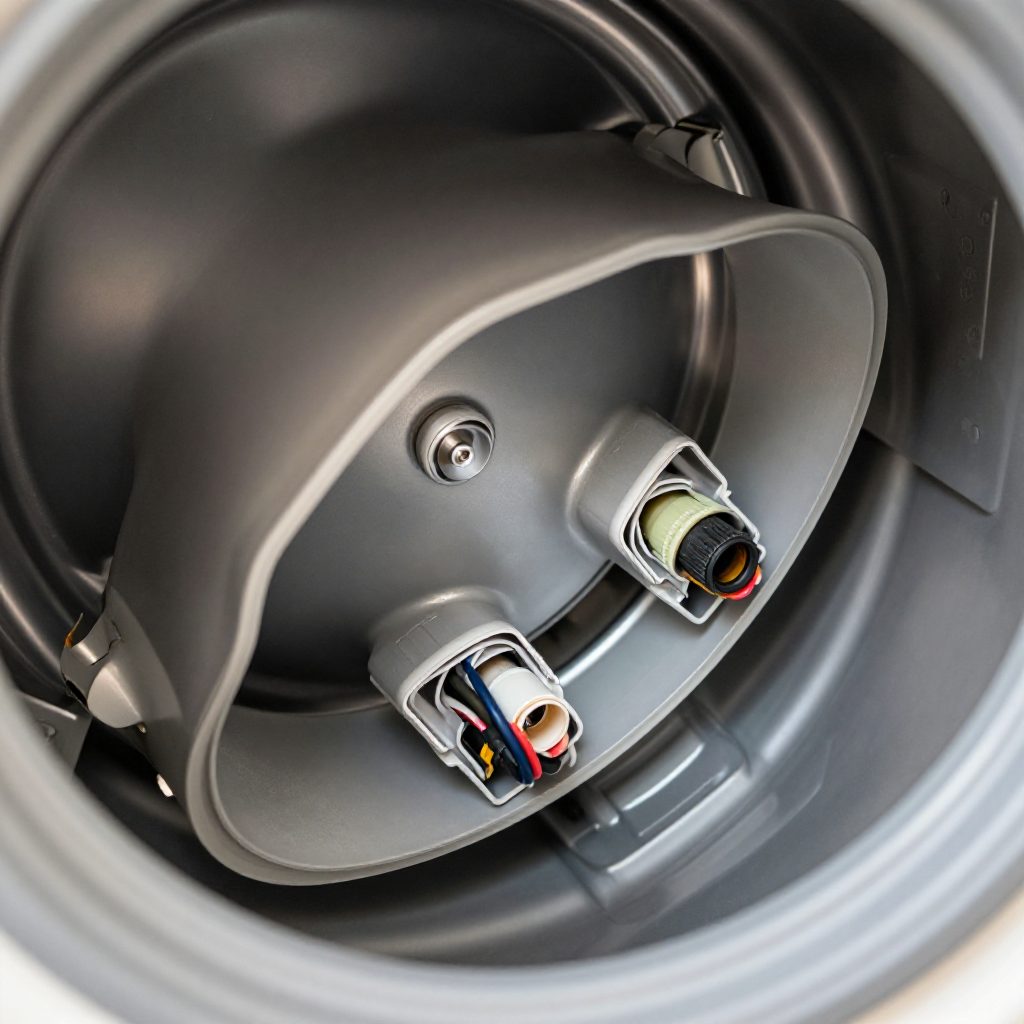

Locate the Heating Element AssemblyInside the dryer, find the heating element housing. It is usually a metal box with wires connected. Remove the wire connectors carefully.

Test the Heating Element with a MultimeterSet your multimeter to resistance (ohms). Touch the probes to the two terminals of the heating element. A good element reads 10-50 ohms. An open circuit means it is broken.

Check the Thermal FuseLocate the small white thermal fuse on the blower housing. Test it for continuity. If the meter shows infinite resistance, replace the fuse.

Install the New Heating Element or FuseInstall the new part, reconnect the wires, and reattach the back panel. Plug the dryer in and run a heat cycle to confirm.

autorenew4. If That Doesn't Work

Try the next recovery options.

Replace the Thermal FuseThe thermal fuse is a safety device that blows if the dryer overheats. Locate it on the blower housing, test with a multimeter, and replace if open.
