Window Crank Handle Just Spins and Window Won't Open

A casement window crank that spins freely without moving the sash means the gear mechanism is stripped or the arm is disconnected. Fix it without replacing the whole window.

Category:Doors & Windows

Difficulty:Moderate

Time:15-20 min

Success:50%

Updated:May 25, 2026

quick_referenceQuick Answer

For Window Crank Handle Just Spins and Window Won't Open, start with "Check if it's the crank handle or the operator that's stripped": Don't order a new operator until you know what's actually stripped. Remove the crank handle by popping off the cover cap and taking out the visible screw. Look at the splines inside the handle hub and on the operator stem — if the handle splines are worn smooth but the stem is sharp, a $5 handle fixes it. If the stem turns with the handle removed and the window doesn't move, the operator gear is stripped and you need a replacement operator. Stop DIY if the window frame itself is rotted or water-damaged around the operator mount — new screws won't hold in rotten wood. This is listed as a moderate recovery and usually takes about 15-20 min.

verifiedGuide Snapshot

Repair areaDoors & Windows

Estimated time15-20 min

DifficultyModerate

Stop conditions4

Last updated May 25, 2026. Review the stop conditions before continuing.

account_treeRecovery State

DeviceWindow

Current stateCrank Spins Wont Open

Specific stateOperator Gear Stripped

Failed stepOperator Replacement

Likely failure typeWorn Part

DIY boundaryDIY recovery first

paymentsCost decision

help1. Understand the Problem

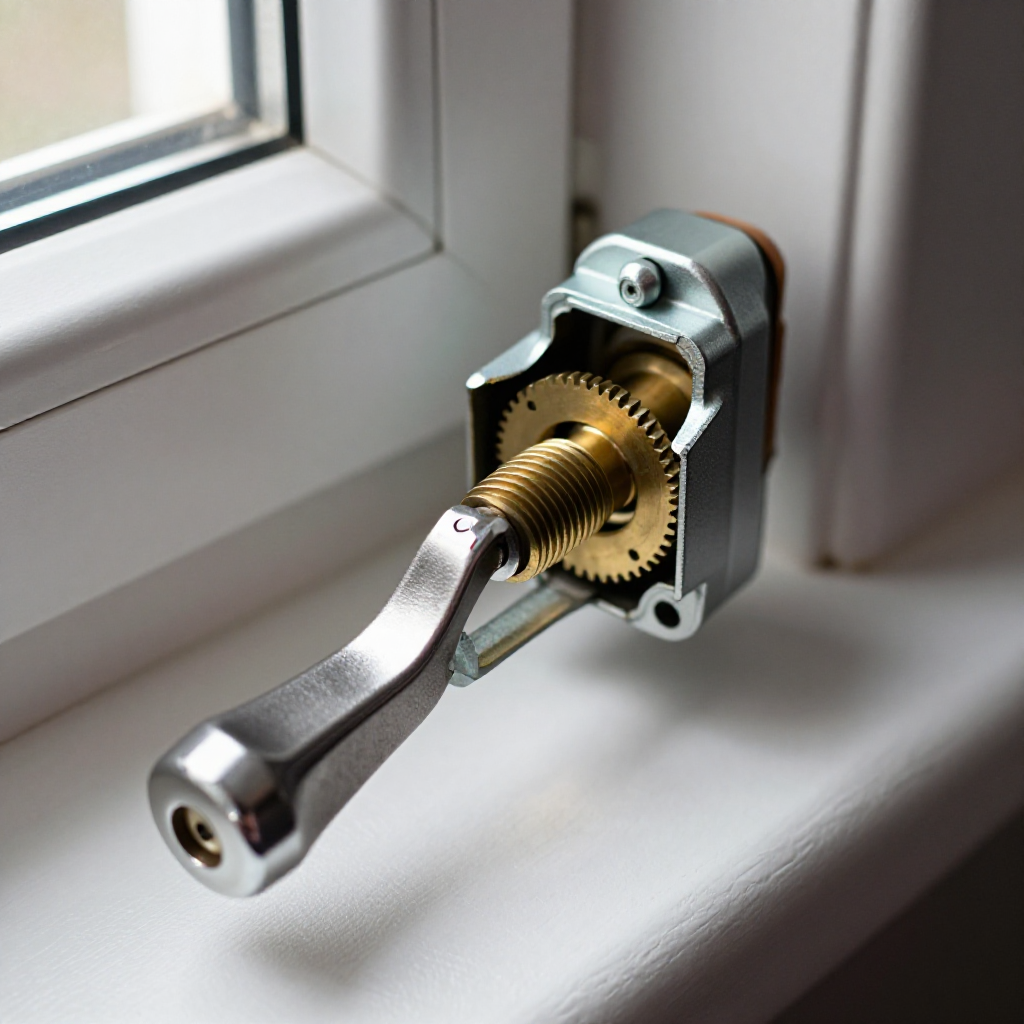

Casement window cranks rely on a worm-gear operator that pushes an arm to swing the sash open. When the crank spins freely, either the gears inside the operator are stripped (common on windows 20+ years old), the crank handle's splines have worn smooth, or the arm linkage has disconnected at the sash bracket. The operator is a replaceable part — you don't need a new window.

build_circle2. Try This First

Best First Step

Check if it's the crank handle or the operator that's stripped

Don't order a new operator until you know what's actually stripped. Remove the crank handle by popping off the cover cap and taking out the visible screw. Look at the splines inside the handle hub and on the operator stem — if the handle splines are worn smooth but the stem is sharp, a $5 handle fixes it. If the stem turns with the handle removed and the window doesn't move, the operator gear is stripped and you need a replacement operator.

visibility3. Visual Guidance

See what's happening and how to try the first recovery step.

Remove the old operator from the window trackWith the crank handle off, unscrew the operator housing from the sill — usually two to four screws. If the window is stuck closed, you may need to unscrew the arm from the sash bracket first to free the whole assembly. Operators are brand-specific, so note the window manufacturer (stamped on the glass corner or the hinge) before buying a replacement.

Match and install the replacement operatorTake the old operator to a hardware store or order by the brand name and part number. Operators are handed (left or right) and have different arm lengths — match these exactly. Install the new operator with the same screws, thread the arm into the sash bracket track, and test the full open-close cycle before snapping the crank handle back on.

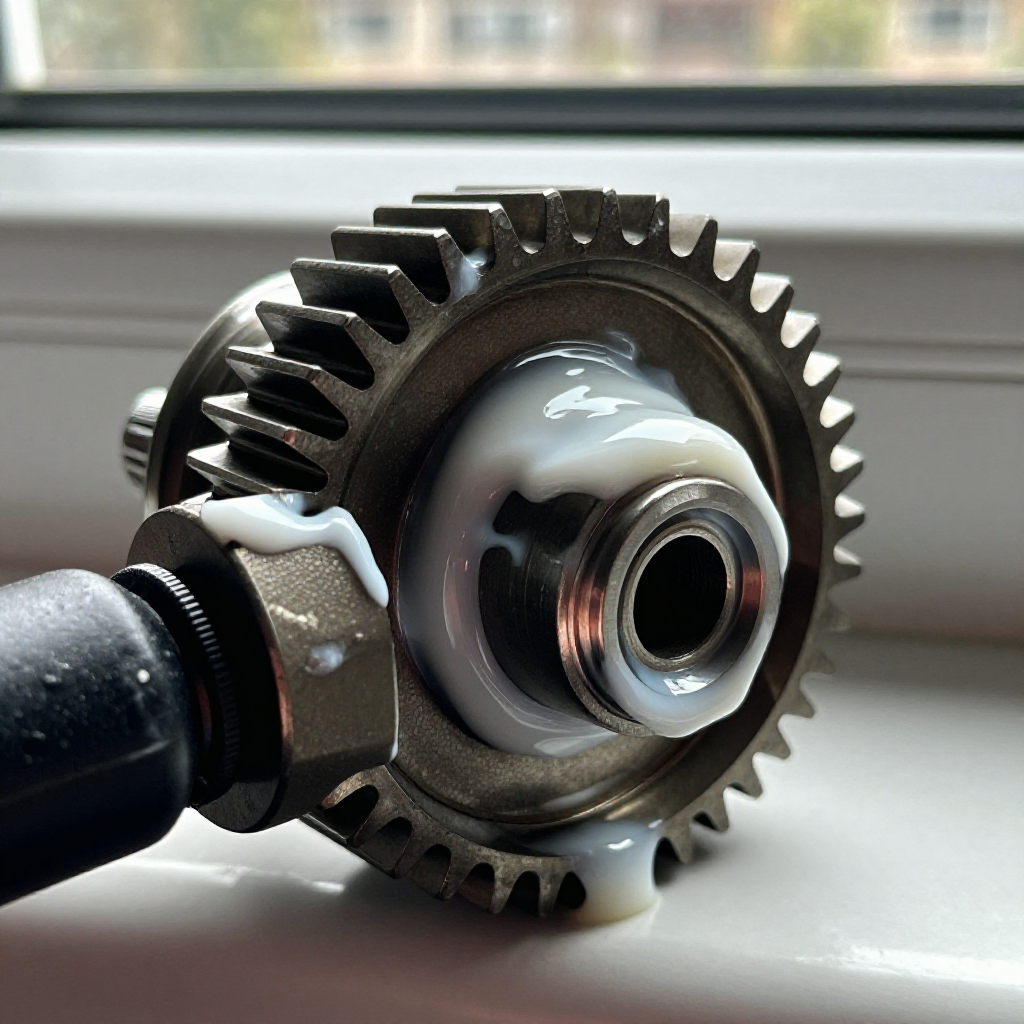

Lubricate the operator and sash trackOnce the new operator is in, apply white lithium grease to the gear mechanism and dry silicone spray to the sash track and hinge points. A dry operator works harder and strips faster. Open and close the window four or five times to distribute the lubricant evenly.

autorenew4. If That Doesn't Work

Try the next recovery options.

open_in_full

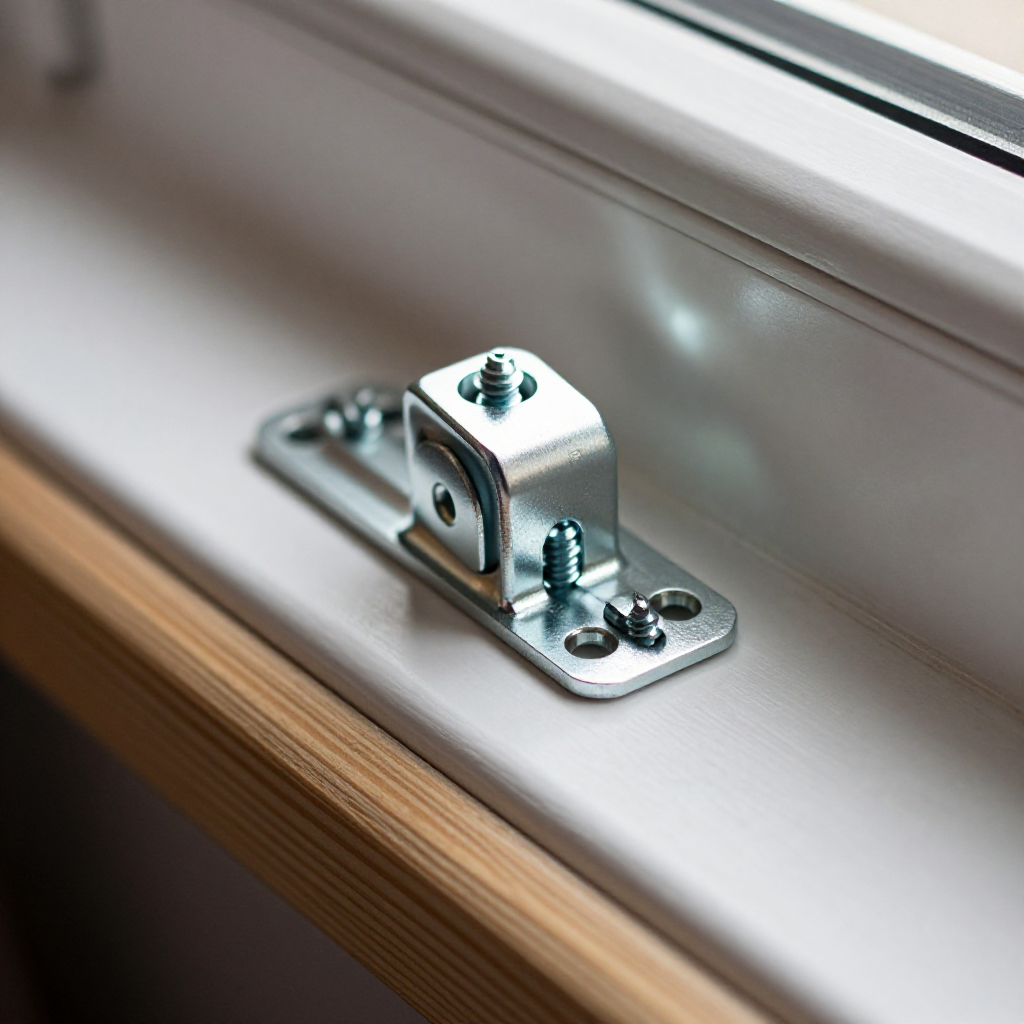

Bypass the operator to get the window open temporarilyIf you need the window open before you can get the part, disconnect the arm from the sash bracket (one screw), push the sash open manually, and prop it with a sturdy stick. Close it the same way — no operator needed for manual operation in a pinch.

chevron_right

upgrade

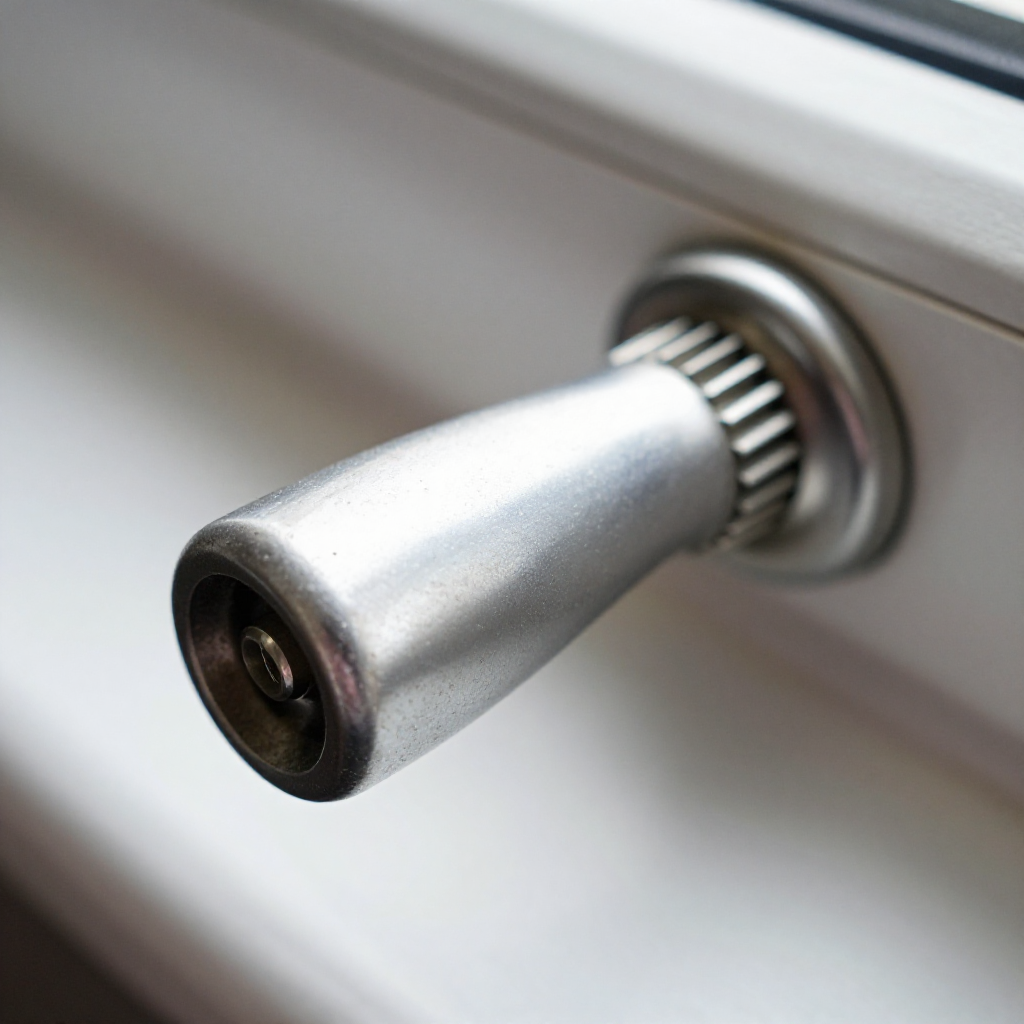

Replace the crank handle with a folding styleIf only the handle is stripped, upgrade to a folding T-handle crank. The T-handle gives you more leverage and the splines tend to last longer than the slim knob style.

chevron_right

Frequently Asked Questions

How do I find the right replacement operator for my casement window?expand_more

Look for the manufacturer name etched into the glass corner or stamped on the hinge. Truth, Andersen, Pella, and Marvin are common brands with widely available operators. Take the old operator to the store to match the arm length and handing.

Why does my window crank turn both ways but the window doesn't move?expand_more

The worm gear inside the operator is stripped. This happens when the window gets hard to open and someone forces the crank against resistance. The gear teeth shear off and the crank spins free in both directions.

Can I convert a casement window to a different operator style?expand_more

Usually not without modifying the sash and frame. It's far easier to match the existing operator. Truth and Andersen operators have been made for decades with compatible replacements still available.

How do I prevent the new operator from stripping too?expand_more

Keep the sash track and hinges clean and lubricated. If the window binds or scrapes, fix the alignment first. A window that's hard to crank is what destroys operators.
